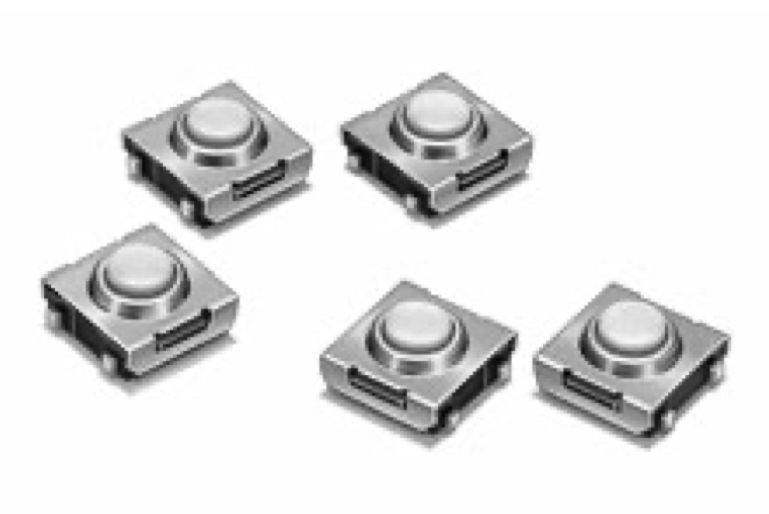

Ratings / Characteristics

Ratings/Characteristics

Rating (resistive load) 1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value) 10 μA at 1 VDC (resistive load)
Ambient operating temperature -25°C to +70°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity 35% to 85% (at +5 to +35°C)
Contact form SPST-NO
Contact resistance (initial value) 100 mΩ max.
Insulation resistance 100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength 250 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max.
Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance Destruction: 1,000 m/s2 {approx. 100G} max.
Durability 100,000 operations min.
Weight Approx. 0.2 g
Degree of protection IEC IP67
Washing Possible

Operating Characteristics

  B3SN-3000 Series B3SN-G Series
Operating force (OF) 1.57±0.49 N {160±50 gf} max. 1.76±0.59 N {180±60 gf} max.
Releasing force (RF) 0.29 N {30 gf} min.
Pretravel (PT) 0.25±0.15 mm
