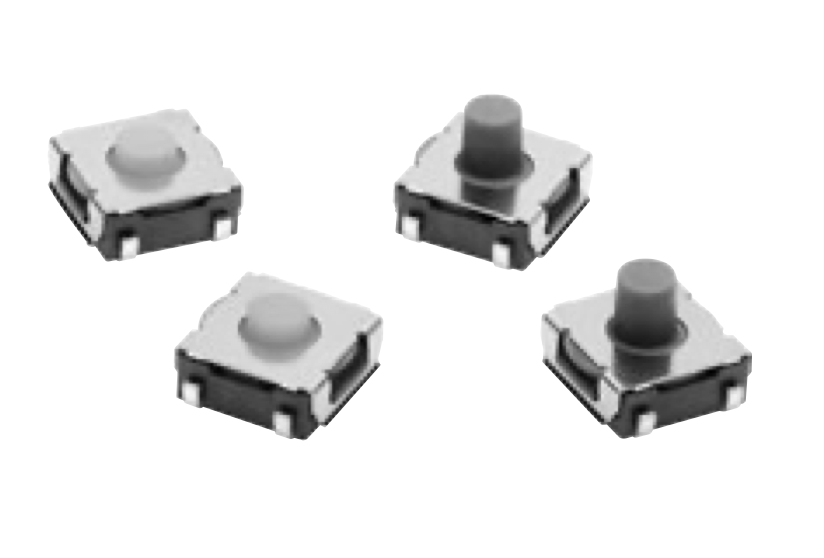

Ratings / Characteristics

Ratings/Characteristics

Rating (resistive load) 1 to 50 mA at 3 to 12 VDC
Minimum applicable load (reference value) 10 μA at 1 VDC (resistive load)
Ambient operating temperature -25°C to +90°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity 35% to 85% (at +5 to +35°C)
Contact form SPST-NO
Contact resistance (initial value) 100 mΩ max.
Insulation resistance 100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength 250 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max.
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Destruction: 1,000 m/s2 {approx. 100G} max.
Durability 100,000 operations min.
Degree of protection IEC IP67
Washing Not possible

Operating Characteristics

Operation type B3SL-1002P
B3SL-1002P-R100		 B3SL-1022P B3SL-1005P
B3SL-1005P-R100		 B3SL-1025P
Operating force (OF) 1.96±0.49 N. {200±50 gf} 3.5 ± 0.8 N {357 ± 82 gf}
Releasing force (RF) 0.35 N min. {35 gf} 0.5 N min. {51 gf}
Pretravel (PT) 0.3±0.2 mm 0.5±0.2 mm 0.6 ± 0.2 mm 0.8 ± 0.2 mm
