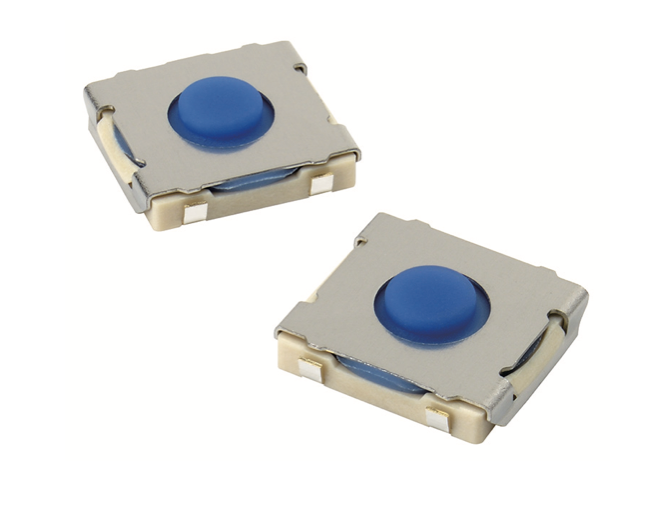

A height of 2 mm contributes to the development of thinner and smaller devices.
Sealed construction conforming to IP67 (IEC 60529) provides high contact reliability in dusty environments. (* Excluding the terminal section.)
Crisp click feeling and high durability of 1million operations.
Surface-mounting pin type is suitable for high-density mounting.
A small package containing 100 embossed taping reels is available,in addition to the standard package containing 2000 reels.

Rating (resistive load)	1 to 50 mA, 3 to 12 VDC
Minimum applicable load (reference value)	10 μA at 1 VDC (resistive load)
Ambient operating temperature	-25°C to +70°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity	35% to 85% (at +5 to +35°C)
Contact configuration	SPST-NO
Contact resistance (initial value)	100 mΩ max.
Insulation resistance	100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength	250 VAC, 50/60 Hz for 1 min
Bounce time	5 ms max.
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction: 980 m/s² {approx. 100 G} max.
Durability	1,000,000 operations min.
Degree of protection	IEC IP67
Washing	Not possible

Document	File Type	File Size	Download
B3SE Series Datasheet	PDF	401 KB
