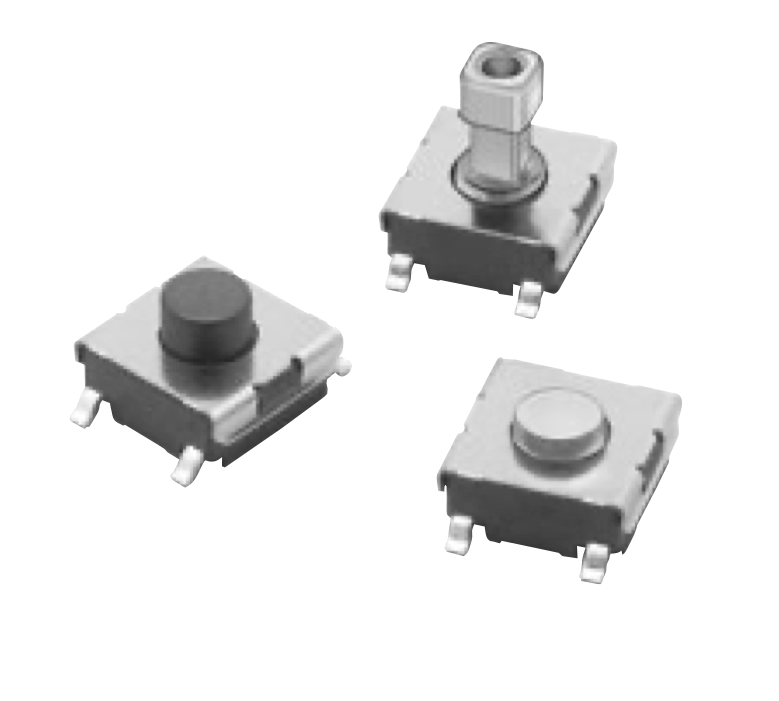

Ratings / Characteristics

Ratings/Characteristics

Rating (resistive load) 1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value) 10 μA at 1 VDC (resistive load)
Ambient operating temperature -25°C to +70°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity 35% to 85% (at +5 to +35°C)
Contact form SPST-NO
Contact resistance (initial value) 100 mΩ max.
Insulation resistance 100 MΩ min. (at 100 VDC with insulation tester)
Dielectric strength 250 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max.
Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance Destruction: 1,000 m/s2 {approx. 100G} max.
Malfunction: 100 m/s2 {approx. 10G} max.
Durability Standard models (OF: 0.98 N {100 gf}): 1,000,000 operations min.
High-force models (OF: 1.47 N {150 gf}): 300,000 operations min.
High-force models (OF: 2.55 N {260 gf}): 100,000 operations min.
Weight Approx. 0.2 g
Degree of protection IEC IP00
Washing Not possible

Operating Characteristics

Type B3FS-1000
Operating force (OF) 0.98N 1.47N 2.55 N
Mode B3FS-10□0□ B3FS-10□2□ B3FS-10□5□
Operating force (OF) 0.98±0.29 N
{100±30 gf}		 1.47±0.49 N
{150±50 gf}		 2.55±0.69 N
{260±70 gf}
Releasing force (RF) 0.2 N {20 gf} min. 0.49 N {50 gf} min. 0.49 N {50 gf} min.
Pretravel (PT)

0.25 +0.2/-0.1 mm
