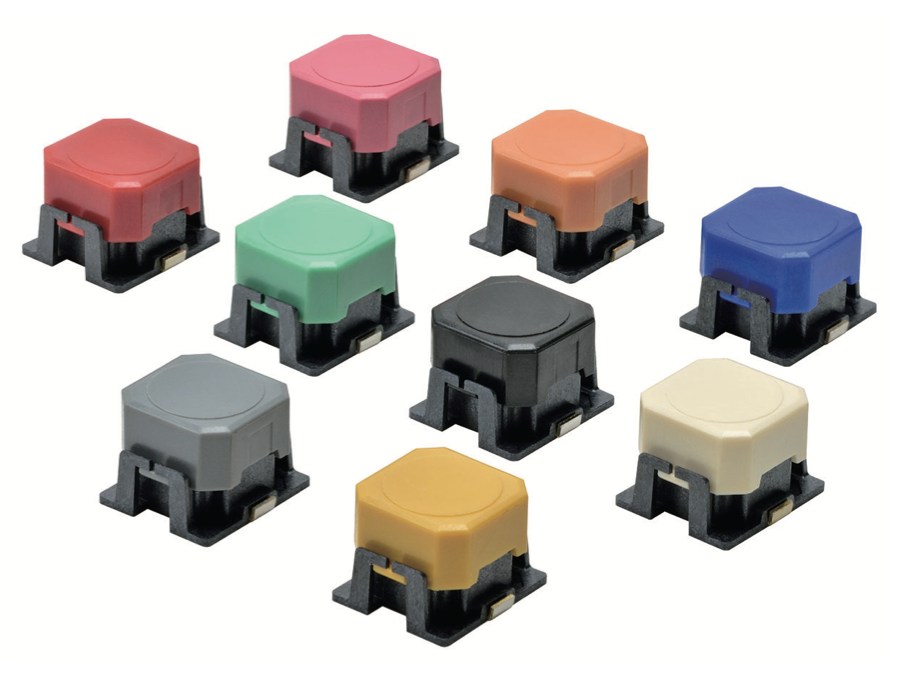

Ratings / Characteristics

Ratings/Characteristics

Rating (resistive load) 1 to 50 mA at 5 to 16 VDC
Ambient operating temperature －40°C to ＋90°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity °C) 35% to 85% (at +5 to +35 °C)
Contact configuration SPST-NO
Contact resistance 100 mΩ max.
Insulation resistance 100 MΩ min. (at 500 VDC with insulation tester)
Dielectric strength 250 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max. (The center of the plunger is pressed at a speed of 3 or 4 times per second.)
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Destruction: 1,000 m/s2 {approx. 100G} max.
Malfunction: 100 m/s2 {approx. 10G} max.
Durability B3AL-1000P : 1,000,000 operations min.
B3AL-1001P : 1,000,000 operations min.
B3AL-1002P : 1,000,000 operations min.
B3AL-1003P : 1,000,000 operations min.
B3AL-1004P : 500,000 operations min.
B3AL-1005P : 1,000,000 operations min.
B3AL-1006P : 1,000,000 operations min.
B3AL-1002P-MS : 1,000,000 operations min.
B3AL-1003P-MS : 1,000,000 operations min.
Weight Approx. 0.18 g

Downloads

Document File Type File Size Download
B3AL Series Datasheet PDF 494 KB
