Ordering Information

List of Models

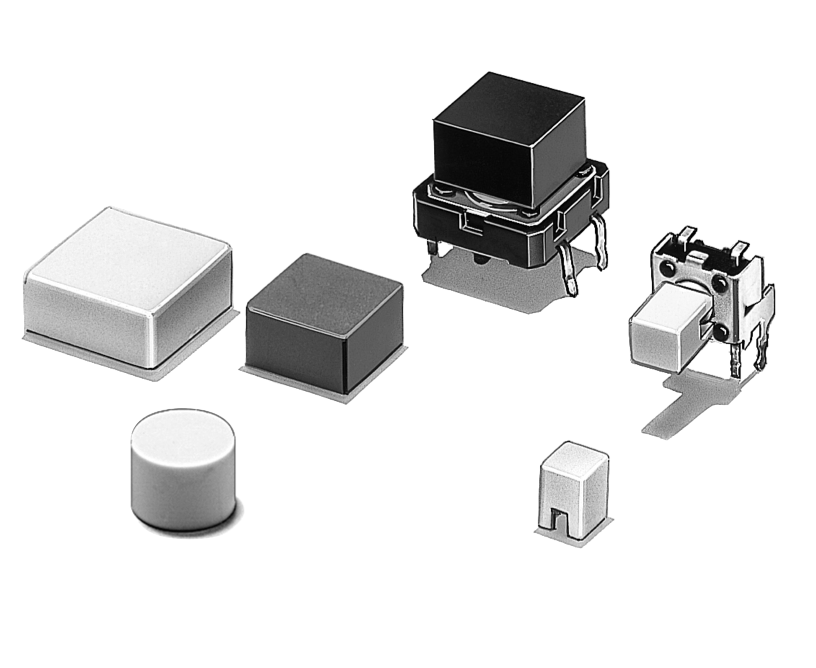

For B3F, B3FS, and B3W Switches

Color 6 × 6 mm Switches
B3F-1000, -1000-G,
B3F-3000, -3000-G, -6000,
B3W-1000,
B3FS-1000		 12 × 12 mm Switches
B3F-4000, -5000, -5001,
B3W-4000,
B3FS-4000
4 × 4 mm Key
Top		 6 mm dia.
Key Top		 D-type
Key Top		 9×9mm
Key Top		 12×12mm
Key Top		 9.5mm dia.
lvory B32-1000 B32-2000 B32-2100 B32-1200 B32-1300 B32-1600
Black B32-1010 B32-2010 B32-2110 B32-1210 B32-1310 B32-1610
Orange B32-1020 - - B32-1220 B32-1320 B32-1620
Yellow B32-1030 - - B32-1230 B32-1330 B32-1630
Blue B32-1040 - - B32-1240 B32-1340 -
Green B32-1050 - - B32-1250 B32-1350 -
White B32-1060 - - B32-1260 B32-1360 -
Red B32-1080 - - B32-1280 B32-1380 -

Note: Bulk Packed, 1000 pcs per bag. Order in multiple of the package quantity.

Ratings / Characteristics

Characteristics

Ambient operating temperature -25°C to +70°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity 35% to 85% (at 5 to 35°C)

Downloads

Document File Type File Size Download
B32 Series Datasheet PDF 319 KB
