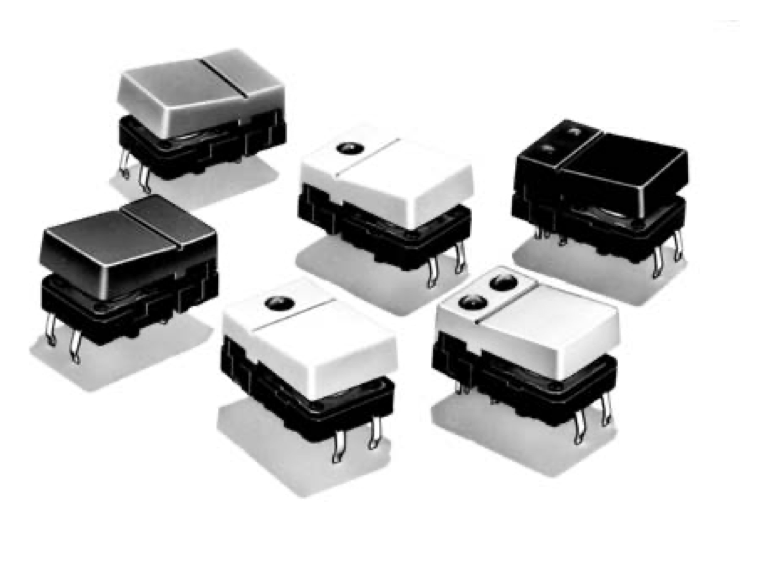

Ratings / Characteristics

Ratings/Characteristics

Rating (resistive load) 1 to 50 mA, 3 to 24 VDC
Minimum applicable load
(reference value)		 10 μA at 1 VDC (resistive load)
Ambient operating temperature -25°C to +70°C at 60%RH max. (with no icing or condensation)
Ambient operating humidity °C) 35% to 85% (at +5 to +35 °C)
Contact configuration SPST-NO
Contact resistance 100 mΩ max.
Insulation resistance 100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength 500 VAC, 50/60 Hz for 1 min
Bounce time 5 ms max.
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Destruction: 1,000 m/s2 {approx. 100G} max.
Malfunction: 100 m/s2 {approx. 10G} max.
Durability 3,000,000 operations min.
Weight Approx. 1.5 to 1.7 g
Degree of protection IEC IP00
Washing Not possible

Operating Characteristics

Operating force (OF) 1.27±0.49 N {130±50 gf}
Releasing force (RF) 0.29 N {30 gf} min.
Pretravel (PT) 0.3 +0.2/-0.1 mm

LED Specifications

Item Red Yellow Green
Forward voltage VF Standard value (V) 2.0 2.0 2.1
Forward current IF Standard value (mA) 20 20 20
Permissible loss P Absolute maximum value(mW) 84 84 84
Reverse voltage VR Absolute maximum value(V) 5 5

5

Note: Since the built-in LED does not contain any limiting resistors, externally connect limiting resistors within the limits shown in the above table.
