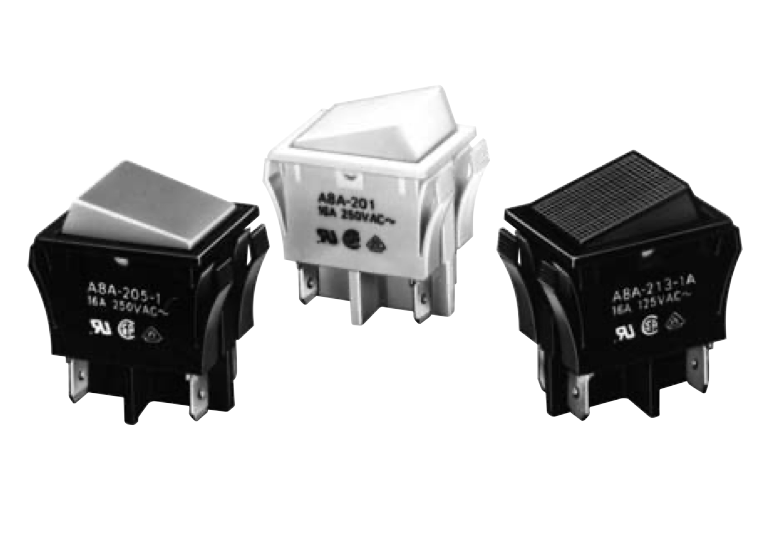

Ratings / Characteristics

Ratings

Rated load Non-inductive Inductive
Resistive load Lamp load Inductive load Inductive motor load
125 VAC 16A 10A 16A 16A
250 VAC 16A 10A 8A 16A

Note: 1. The above value shows steady current.
2. The inductive load has a power factor of 0.4 min (AC) and a time constant of 7 ms min (DC).
3. Lamp load has an inrush current of 10 times the steady current.
4. Motor load has an inrush current of 6 times the steady current.
5. The above ratings were tested under the following conditions:
(1) Ambient temperature: 20±2 ℃
(2) Ambient humidity: 65±5 %RH
(3) Switching frequency: 20 times/min.

Characteristics

Permissible operating speed 30 mA at 30 VDC
10μA (minimum current) at 3.5 VDC
Permissible operating frequency -20 to +70℃ at 60% max. (with no icing or condensation)
Insulation resistance 35% to 95% (at +5 to +35℃)
Contact resistance
(initial value)		 100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength 2.000 VAG, 50/60 Hz, for 1 min between terminals of the same polarity
2.000 VAG, 50/60 Hz, for 1 min between terminals of the different polarity (See Note *)
4.000 VAG, 50/60 Hz, for 1 min between charged metal parts and the ground terminal
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Malfunction: 300 m/s2 max.
Durability Mechanical: 40,000 operations min.
Electrical: 20,000 operations min.
Weight Non-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current 100A max. (100 ms max.)
Ambient operating temperature - 25 to +50 °C (with no icing or condensation)
Ambient operating humidity 45 to 85 %RH
Degree of protection IEC IP40
Electric shock protection class Class II
PTI (proof tracking index) 175
Pollution degree 2
