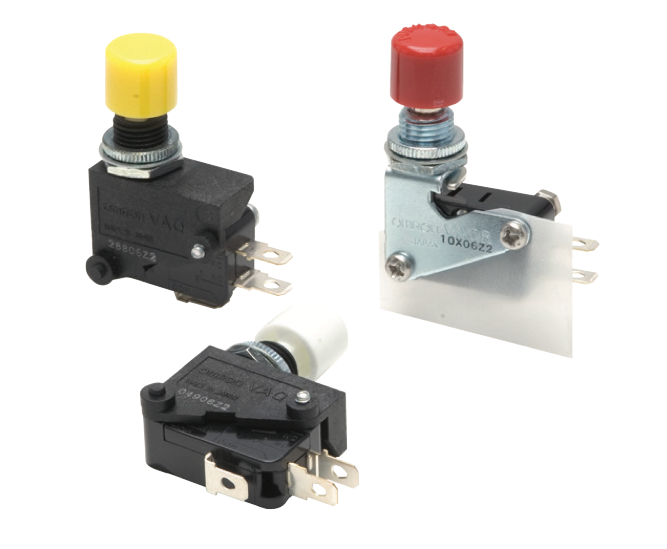

Ratings / Characteristics

Allowable
operating
frequency		 Mechanical 120 operations/min
Electrical 20 operations/min
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 30 mΩ max. (initial value)
Dielectric
strength		 Between terminals of same
polarity		 1,000 VAC, 50/60 Hz for 1 minute
Between current-carrying metal part and ground,
and between each terminal and noncurrent-
carrying metal part		 1,500 VAC, 50/60 Hz for 1 minute
Vibration
resistanc		 Malfunction 10 to 55 Hz, 1.5 mm double amplitude *
Shock
resistance		 Destruction 500 m/s2 max.
Malfunction 200 m/s2 max.
Durability Mechanical 3,000,000 operations min.
Electrical 100,000 operations min.
Weight Approx. 12 to 40 g
Inrush
current		 NC 36 A max.
NO 36 A max.
Ambient operating temperature -25 to 80°C (with no icing or condensation)
Ambient operating humidity 35% to 85%RH
Ambient storage temperature -25 to 80°C (with no icing or condensation)
Degree of protection IP00
Electric shock protection class Class II
PTI (tracking characteristic) 175
Pollution degree 3 (IEC947-5-1)

* Malfunction within 1 ms
