Ratings / Characteristics

Ratings

Rated
voltage
(V)		 Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
125 VAC
250 VAC		 5
5		 1.5
1		 0.7
0.5		 3
3		 2
1.5		 1
0.8
12 VDC
24 VDC
125 VDC
250 VDC		 5
5		 3
3		 4
4		 3
3
0.4
0.4		 0.2
0.2		 --- --- ---

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.

Characteristics

Degree of protection IP65
Durability
*		 Mechanical 10,000,000 operations min. (under rated conditions)
Electrical See the following Electrical Durability.
Operating speed 5 mm/s to 0.5 m/s
Operating
frequency		 Mechanical 120 operations/min
Electrical 30 operations/minute min.
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 25 mΩ max. (initial value)
Dielectric
strength		 Between terminals of the same
polarity		 1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal
part and ground		 1,500 VAC, 50/60 Hz for 1 min
Between each terminal and non-
current-carrying metal part		 1,500 VAC, 50/60 Hz for 1 min
Rated frequency 50/60 Hz
Vibration
resistance		 Malfunction 10 to 55 Hz, 1.5-mm double amplitude
Shock
resistanc		 Destruction 1,000 m/s2 max.
Malfunction 300 m/s2 max.
Ambient operating temperature -5°C to +65°C (with no icing)
Ambient operating humidity 35% to 95%RH
Weight Approx. 130 to 190 g

Note: 1. The above figures are initial values.
2. The above characteristics may vary depending on the model. For further details, contact your OMRON sales representative.
* The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

Downloads

Document File Type File Size Download

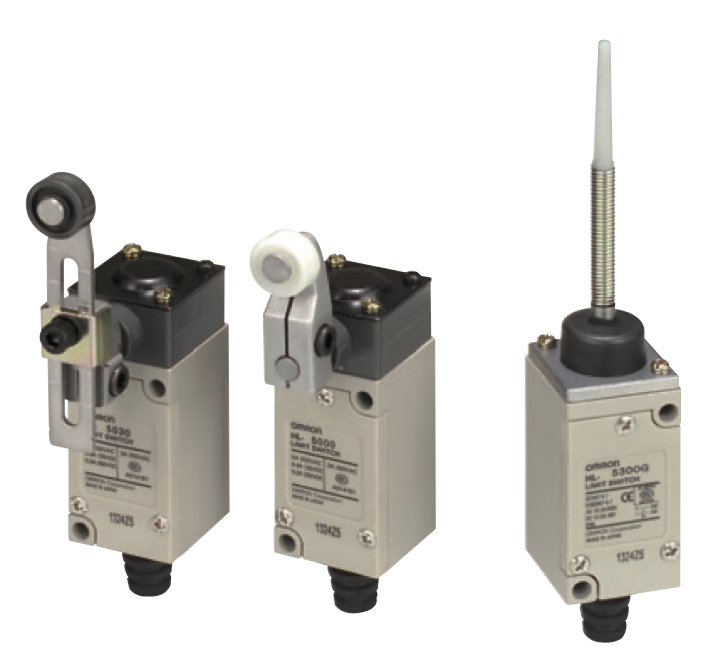

HL-5000 Series Datasheet PDF 731 KB
