Ratings / Characteristics

Ratings

Rated
voltage
(V)		 Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
125 VAC 1 1 1 0.7 1 1 1 1
30 VDC 1 1 1 1 1 1 1 1

Note: 1. The above current ratings are for steady-state current.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp loads have an inrush current of 10 times the steady-state current.
4. Motor loads have an inrush current of 6 times the steady-state current.

Characteristics

Degree of protection IP67
Durability
*1		 Mechanical 10,000,000 operations min.
Electrical 200,000 operations min. (1 A at 125 VAC, resistive load)
Operating speed 0.1 mm/s to 0.5 m/s (in case of plunger)
1 mm/s to 1 m/s (in case of roller lever)
Operating
frequency		 Mechanical 120 operations/min
Electrical 30 operations/minute min.
Rated frequency 50/60 Hz
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max.
Dielectric
strength		 Between terminals of the same
polarity		 1,000 VAC, 50/60 Hz for 1 min
Between current-carrying metal
part and ground		 1,500 VAC, 50/60 Hz for 1 min
Between each terminal and non-
current-carrying metal part		 1,500 VAC, 50/60 Hz for 1 min
Vibration
resistance		 Malfunction 10 to 55 Hz, 1.5-mm double amplitude *2
Shock
resistanc		 Destruction 1,000 m/s2 max.
Malfunction 500 m/s2 max.
Ambient operating temperature -10°C to +70°C (with no icing)
Ambient operating humidity 35% to 95%RH

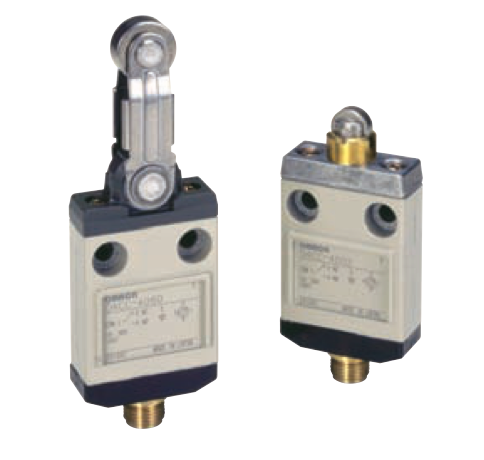

Weight Approx. 120 g (in the case of D4CC-1002)

Note: The above figures are initial values.
*1. The values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 40% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.
*2. Excluding plastic rod models.
