Ratings / Characteristics

Ratings

Rated
voltage
(V)		 Non-inductive load (A) Inductive load (A)
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
125 VAC
250 VAC		 10
10		 3
2.5		 1.5
1.25		 10
10		 5
3		 2.5
1.5
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC		 10
10
6
0.5
0.25		 3
3
3
0.4
0.2		 1.5
1.5
1.5
0.4
0.2		 6
6
5
0.05
0.03		 5
5
5
0.05
0.03		 2.5
2.5
2.5
0.05
0.03

Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current. v 4. Motor load has an inrush current of 6 times the steady-state current.
5. The above ratings were tested under the following conditions according.
(1) Ambient temperature:+20±2°C
(2) Ambient humidity: 65±5%RH
(3) Operating frequency:20 operations/min.

Characteristics

Degree of protection IP67
Durability  Mechanical 10,000,000 operations min.
Electrical 500,000 operations min.
Operating speed 0.05 mm/s to 0.5 m/s *1
Operating
frequency		 Mechanical 120 operations/min
Electrical 20 operations/minute min.
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 15 mΩ max. (initial value for the builtin switch when tested alone)
Dielectric
strength		 Between terminals of the same
polarity		 1,000 VAC, 50/60 Hz for 1 min
Between each terminal and non-
current-carrying metal part		 2,000 VAC, 50/60 Hz for 1 min
Rated insulation voltage (Ui) 1,000 VAC
Pollution degree (operating environment) 3 (IEC947-5-1)
Short-circuit protective device 10 A-fuse type gG (IEC 60269)
Protection against electric shock Class II
Proof tracking index (PTI) 175
Switch category D (IEC335)
Rated operating current (Ie) 10 A
Rated operating voltage (Ue) 250 VAC
Vibration
resistance		 Malfunction 10 to 55 Hz, 1.5-mm double amplitude *2
Shock
resistanc		 Destruction 1,000 m/s2 max.
Malfunction 300 m/s2 max. (in case of plunger model) *1 *2
Ambient operating temperature -10°C to +80°C (with no icing)
Ambient operating humidity 35% to 95%RH

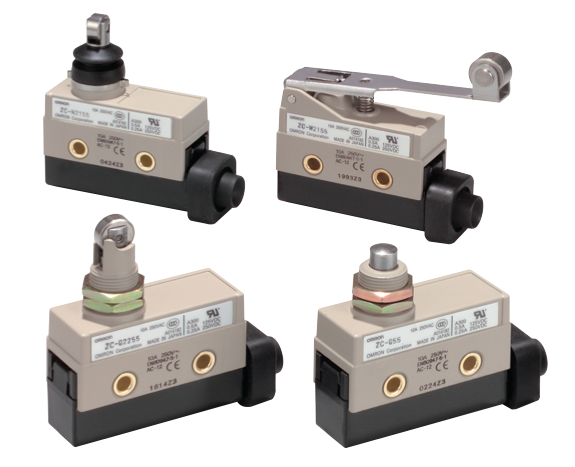

Weight Approx. 92 g (in case of ZC-Q22(21)55)

*1. Only for models with plungers. (Contact your OMRON representative for information on other models.)
*2. Less than 1 ms under a free state at the operating limits.

Downloads

Document File Type File Size Download
ZC-[]55 Series Datasheet PDF 1.0 MB
