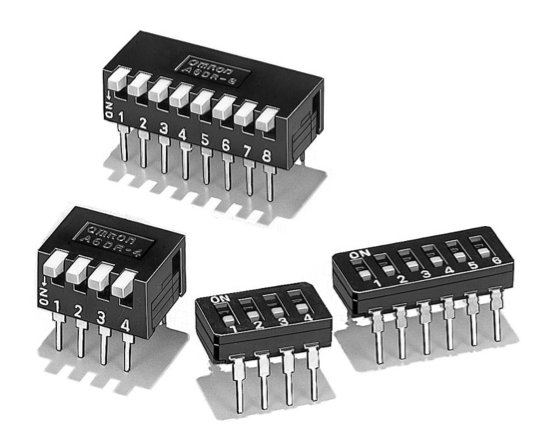

Relay Specialties, Inc. - Omron - Products - Switches - DIP Switches - Slide

Sealed structure equivalent to IP64 (IEC-60529) prevents flux penetration and provides high contact reliability even in dusty locations and locations where water is used.
Smooth, sure switching action enables comfortable operation.
Gold-plated twin contacts ensure high reliability.

Rating (resistive load)		30 mA at 30 VDC 10μA (minimum current) at 3.5 VDC
Ambient operating temperature		-20 to +70℃ at 60% max. (with no icing or condensation)
Ambient operating humidity		35% to 95% (at +5 to +35℃)
Insulation resistance		100 MΩ min. (at 250 VDC with insulation tester)
Contact resistance (initial value)		100 mΩ max.
Dielectric strength	Between terminals	500 VAC for 1 min
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Malfunction	300m/s²min.
Durability	Electrical	2,000 operations min.
Washing		Possible
Degree of protection		Internally sealed (IEC IP64 equivalency)
Operating force		0.29 to 4.9N
Weight		Slide: 0.28 g (2 poles), 0.45 g (4 poles), 0.65 g (6 poles), 0.80 g (8 poles), 1.0 g (10 poles)

Document	File Type	File Size	Download
A6D Series Datasheet	PDF	544 KB
