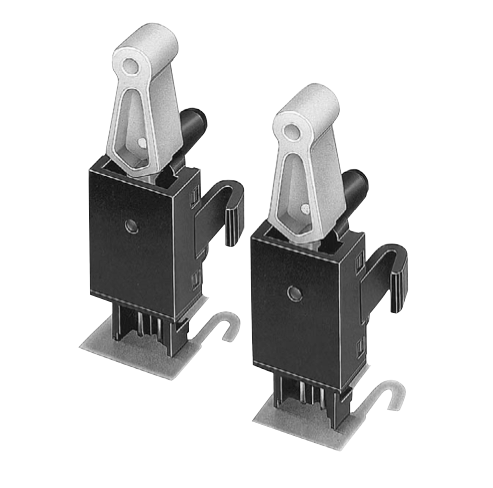

Ratings / Characteristics

Ratings

Rated voltage Resistive load
30 VDC 0.1 A (resistive load)

Note: The ratings values apply under the following test conditions:
(1)Ambient temperature : 20±2ºC
(2)Ambient humidity: 65±5%
(3)Operating frequency: 30 operations/min

Characteristics

Permissible operating speed 0.1 mm to 100 mm/s
Permissible operating frequency Mechanical: 60 operations/min max.
Electrical: 30 operations/min max.
Insulation resistance 100 MΩ min. (at 250 VDC)
Contact resistance (initial value) 200 mΩ max.
Dielectric strength 250 VAC, 50/60 Hz for 1 min between terminals of same polarity
250 VAC, 50/60 Hz for 1 min between current-carrying metal part and ground
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance Destruction 500m/s2{approx. 50G} max.
Malfunction 300 m/s2 {approx. 30G} max.
Durability * Mechanical 1,000,000 operations min.
Electrical 50,000 operations min.
Degree of protection IEC IP00
Degree of protection against electric shoc Class I
Proof tracking index (PTI) 175
Ambient operating temperature -10ºC to +70ºC (at ambient humidity of 60% max.)
(with no icing or condensation)
Ambient operating humidity 45% to 85% (for +5ºC to +35ºC)
Weight Approx. 1 g

Note: The data given above are initial values.
* For testing conditions, consult your OMRON sales representative.
