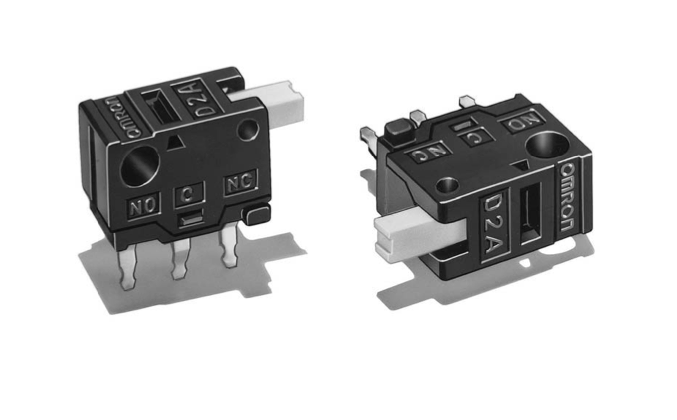

Ratings / Characteristics

Ratings

Rated voltage Resistive load
30 VDC 0.1 A (resistive load)

Note: The ratings values apply under the following test conditions:
(1)Ambient temperature : 20±2ºC
(2)Ambient humidity: 65±5%
(3)Operating frequency: 30 operations/min

Characteristics

Permissible operating speed 1mm to 500 mm/s
Permissible operating frequency Mechanical 200 operations/min max.
Electrical 30 operations/min max.
Insulation resistance 100 MΩ min. (at 250 VDC with insulation tester)
Contact resistance (initial value) 50 mΩ max.
Dielectric strength Between terminals of the
same polarity		 250 VAC 50/60 Hz 1 min
Between current-carrying
metal parts and ground		 250 VAC 50/60 Hz 1 min
Vibration resistance *1 Malfunction between 10 to 55 Hz, 1.5 mm-double amplitude
Shock resistance Destruction 1,000 m/s2 {approx. 100G} max.
Malfunction*1 300 m/s2 {approx. 30G} max.
Durability *2 50,000 operations min.(30 operations/min)
Degree of protection IEC IP00
Ambient operating temperature -10°C to +80°C (at ambient humidity 60% max.) (with no icing or condensation)
Ambient operating humidity 85% max. (for +5°C to +35°C)
Weight Approx. 0.3 g

Note: The data given above are initial values.
*1 The given values apply for Total Travel Position. Close or open circuit of the contact is 1ms max.
*2 For testing conditions, consult your OMRON sales representative.
