Function like an inverter by holding down the starting current.
Comply with UL, CSA, CCC, IEC (400-V models only), and JEM requirements.
Mount with screws or to DIN tracks.

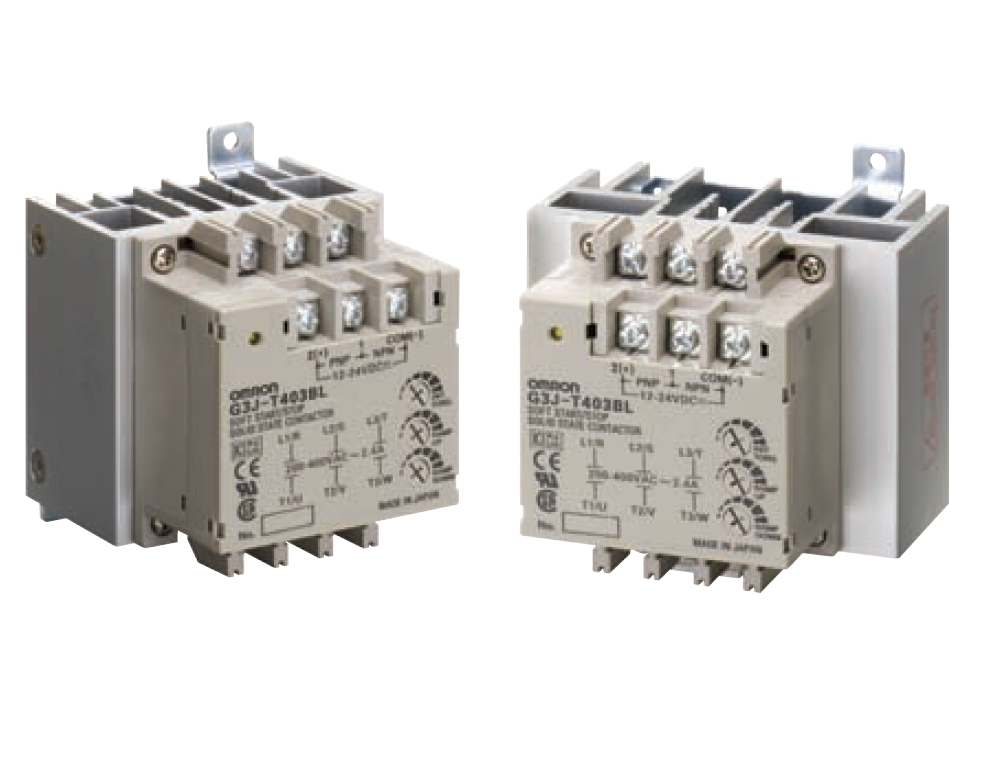

Compact monoblock construction for the G3J-T217BL (W: 100 × H: 100 × D: 110 mm) with a heat sink.
Snubber circuit and varistor are built-in.
Operation indicator.

Item	G3J-T405BL	G3J-T403BL	G3J-T217BL	G3J-T211BL	G3J-T205BL
Ramp-up time	Set within a range from 1 to 25 s.
Ramp-down time	Set within a range from 1 to 25 s.
Starting torque	Set within a range from 200% to 450% In.
Output ON-voltage drop	1.8 VRMS max.		1.6 VRMS max.
Leakage current	20 mA max. (at 400 VAC)		10 mA max. (at 200 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance	Destruction: 294 m/s²
Ambient temperature	Operating: -20°C to 60°C (with no icing or condensation) Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity	Operating: 45% to 85%
Weight	730 g max.		800 g max.	730 g max.
Standards	UL508 File No. E64562 CSA22.2 No. 14 File No. LR35535 CCC GB/T 14048.6 No. 2016010304855598 (G3J-T405BL, G3J-T403BL) CCC GB/T 14048.6 No. 2016010304855599 (G3J-T217BL, G3J-T211BL, G3J-T205BL)
