Ratings / Characteristics

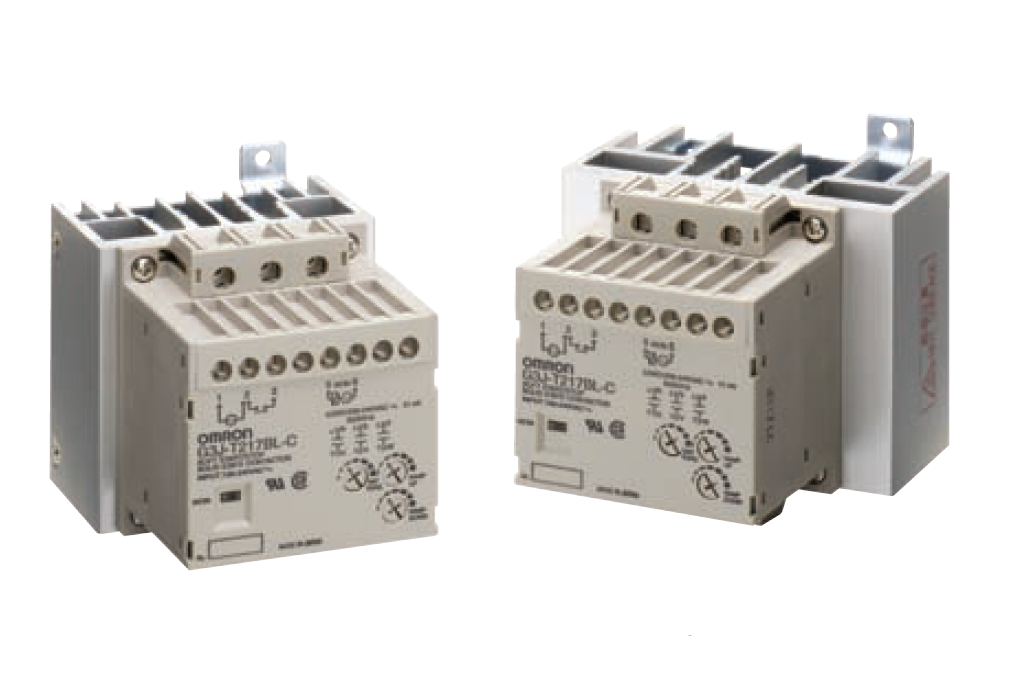

Item G3J-T217BL-C G3J-T211BL-C G3J-T205BL-C
Ramp-up time Set within a range of approx. 1 to 25 s.
Ramp-down time Set within a range of approx. 1 to 25 s.
Starting torque *1 Set within a range of 200% to 450% In.
Monitor output operate time *2 After control signal input: AC model: 300 ms max. (TYP 50 ms),
DC model: 50 ms max.
Monitor output release time *2 After ramp-down time completion (after main circuit current turns OFF):
60 ms max.
Output ON voltage drop
(main circuit)		 1.6 V (RMS) max.
Output ON voltage drop
(monitor output)		 AC model: 3.5 VAC max., DC model: 2.0 VDC max.
Leakage current (main circuit) 10 mA max. (at 200 VAC)
Leakage current (monitor output) AC model: 1.5 mA max. (at 200 VAC), DC model: 0.15 mA max. (at 24 VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC, 60 Hz for 1 min
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 294 m/s2
Ambient temperature Storage: - 30 to 70 °C (with no icing or condensation)
Operating:- 20 to 60 °C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Weight Approx. 890 g Approx. 760 g Approx. 760 g

*1. Provided that the starting torque is 600% In when the motor is started at full voltage.
*2. The monitor output will be ON while load current is flowing to the main circuit.
