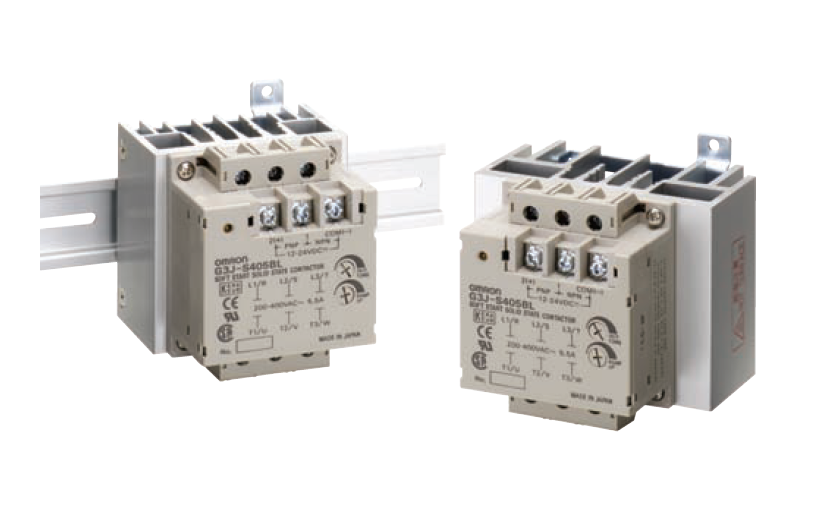

The soft-start function allows a smooth startup of motors by holding down the starting current, and functions like an inverter.
Comply with UL, CSA, CCC, IEC, and JEM requirements.
Mount with screws or to DIN tracks.
Compact monoblock construction (W: 80 × H: 100 × D: 100 mm) with a heat sink.
Snubber circuit and varistor are built-in.
Operation indicator.

Item	G3J-S405BL	G3J-S403BL	G3J-S211BL	G3J-S205BL
Ramp-up time	Set within a range from 1 to 25 s.
Reset time	5/6 cycles of load power supply + 1 ms max.
Starting torque	Set within a range from 200% to 450% In.
Output ON-voltage drop	1.8 VRMS max.		1.6 VRMS max.
Leakage current	20 mA max. (at 400 VAC)		10 mA max. (at 200 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance	Destruction: 294 m/s²
Ambient temperature	Operating: -20°C to 60°C (with no icing or condensation) Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity	Operating: 45% to 85%
Weight	730 g max.
Certified standards	UL508 File No. E64562 CSA 22.2 No. 14 File No. LR35535 CCC GB/T 14048.6 No. 2016010304855598 (G3J-S405BL, G3J-S403BL) CCC GB/T 14048.6 No. 2016010304855599 (G3J-S211BL, G3J-S205BL) IEC947-4-1 File No. 96.2597.02
EMC	Emission AC mains IEC947-4-2, CISPR 11 Class A Emission Electromagnetic IEC947-4-2, CISPR 11 Class A Immunity ESD IEC947-4-2, IEC801-2: 4 kV contact discharge, 8 kV air discharge Immunity Electromagnetic IEC947-4-2, IEC1000-4-3 10 V/m (80 MHz to 1 GHz) Immunity EFT IEC947-4-2, IEC801-4: 2 kV AC power-signal line Immunity Surge transient IEC947-4-2, IEC1000-4-5 1 kV differential mode, 2 kV common mode Immunity RF disturbance IEC947-4-2, IEC/DIS1000-4-6 10 V (0.15 to 80 MHz)
