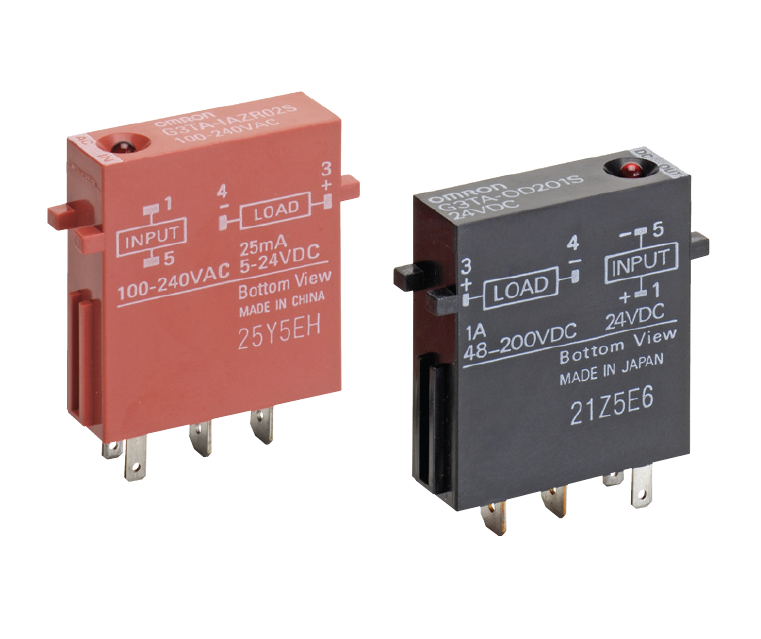

Ratings / Characteristics

Input Module

Item G3TA-IAZR02S-US G3TA-IDZR02S-US G3TA-IDZR02SM-US
Operate time 20 ms max. 0.5 ms max.
Release time 20 ms max. 0.5 ms max.
Output ON voltage drop 1.6 V max. 1.6 V max.
Leakage current 5 μA max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance Malfunction: 1000 m/s2
Ambient temperature Operating: -30°C to 80°C (with no icing or condensation)
Storage: -30°C to 100°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Certified standards UL508 file No. E64562/CSA C22.2 (No. 0, No. 14) file No. LR35535
Weight Approx. 16 g


Output Module

Item G3TA-OA202SZ-US G3TA-OA202SL-US G3TA-ODX02S-US G3TA-OD201S-US
Operate time 1/2 of load power source
cycle + 1 ms max.		 1 ms max. 0.5 ms max. 2 ms max.
Release time 1/2 of load power source
cycle + 1 ms max.		 2 ms max. 2 ms max.
Output ON
voltage drop		 1.6 V rms max. 1.6 V max. 2.5 V max.
Leakage
current		 5 mA max. (at 200 VAC) 1 mA max.
Insulation
resistance		 100 MΩ min. (at 500 VDC)
Dielectric
strength		 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance Malfunction: 1000 m/s2
Ambient temperature Operating: -30°C to 80°C (with no icing or condensation)
Storage: -30°C to 100°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Certified standards UL508 file No. E64562, CSA C22.2 (No. 14) file No. LR3553
Weight Approx. 23 g
