Realized about 25% lower profile than conventional products, contributing to further miniaturization of the control panel.
Optimal slim, high frequency, high-speed opening and closing SSR (solid state relay).
Realized a slim shape with a switching capacity up to 3 A (DC), and 2 A (AC).
Because MOSFET is used for the outlet element for the DC load, opening and closing load of 100 μA to 3 A is possible.
Check operating status at a glance at the operating display LED.
Mounted I/O SSR (solid-state relay) uses plug-in terminals that are difficult to bend when exchanging.

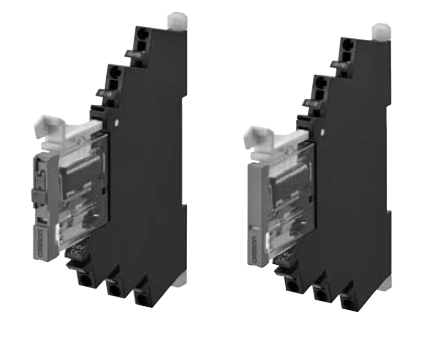

G2RV-SR featuring a general-purpose relay similar in shape to G3RV-SR also available.

Item	G3RV-SR700/500-A	G3RV-SR700/500-AL	G3RV-SR700/500-D
Operate time	1/2 cycle of load power supply +1 ms max.	3 ms max.	6 ms max.
Release time	60 ms max.	60 ms max.	60 ms max.
Output ON voltage drop	1.6 V (RMS) max.		-
Output ON resistance	-		0.3 Ω max. (at 24 VDC)
Leaked current	5 mA max. (at 200 VAC, 50/60 Hz)		10 μA max. (at 24 VDC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	Between input and output 2,500 VAC 50/60 Hz 1 min
Vibration resistance*	Malfunction: 10 to 55 to 10 Hz double amplitude 0.70 mm
Shock resistance*	300 m/s²
Ambient temperature	Storage: -30 to +100°C (with no icing or no condensation) Operating: -30 to +55°C (with no icing or no condensation)
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 38 g
Pollution degree	2
The degree of protection by IEC60529	IP20
Rated impulse dielectric strength	4.0 kV/III
Load category	LC-A		DC-12
Overload current profile	1.5Ie 1.1Ue 5s ON, 10s OFF, 10 cycles
Rated insulation voltage	240 V

Document	File Type	File Size	Download
G3RV-SR Series Datasheet	PDF	9.2 MB
