Ratings / Characteristics

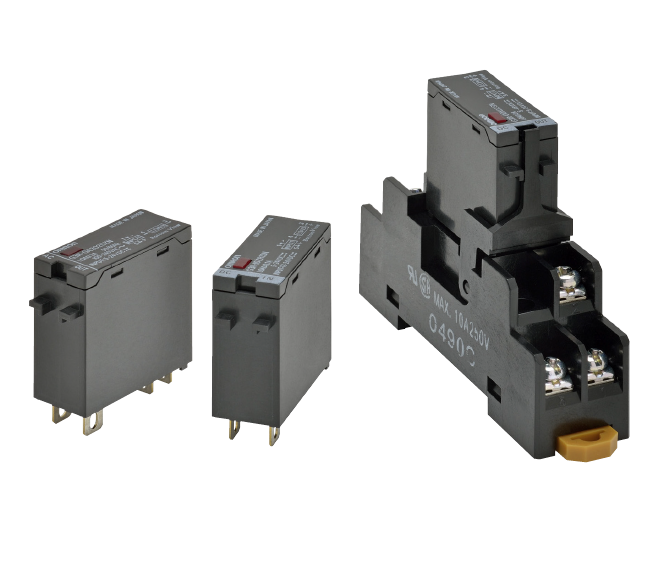

Input Modules for Microloads

Model G3R-IAZR1SN (-UTU) G3R-IDZR1SN (-UTU G3R-IDZR1SN-1 (-UTU
Operate time 20 ms max. 0.1 ms max. 15 ms max.
Release time
Response frequency 10 Hz 1 kHz 10 Hz
Output ON voltage drop 1.6 V max.
Leakage current 5 μA max.
Insulation resistance 100 MΩ min. between I/O
Dielectric strength 4,000 VAC for 1 min. between I/O
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1000 m/s2
Ambient temperature Storage: -30 to 100°C (with no icing)
Operating: -30 to 80°C (with no icing)
Ambient humidity Operating: 45% to 85%
Weight Approx. 18 g

Output Modules for Standard Loads

Item G3R-OA202SZN (-UTU) G3R-OA202SLN (-UTU) G3R-ODX02SN (-UTU) G3R-OD201SN (-UTU)
Operate time 1/2 load power supply
cycle + 1 ms max.		 1 ms max.
Release time 1/2 load power supply cycle + 1 ms max. 2 ms max.
Response frequency 20 Hz 100 Hz
Output ON voltage drop 1.6 V max. 2.5 V max
Leakage current 1.5 mA max. 1 mA max.
Insulation resistance 100 MΩ min. between I/O
Dielectric strength 4,000 VAC for 1 min. between I/O
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1000 m/s2
Ambient temperature Storage: -30 to 100°C (with no icing)
Operating: -30 to 80°C (with no icing)
Ambient humidity Operating: 45% to 85%
Weight Approx. 18 g
