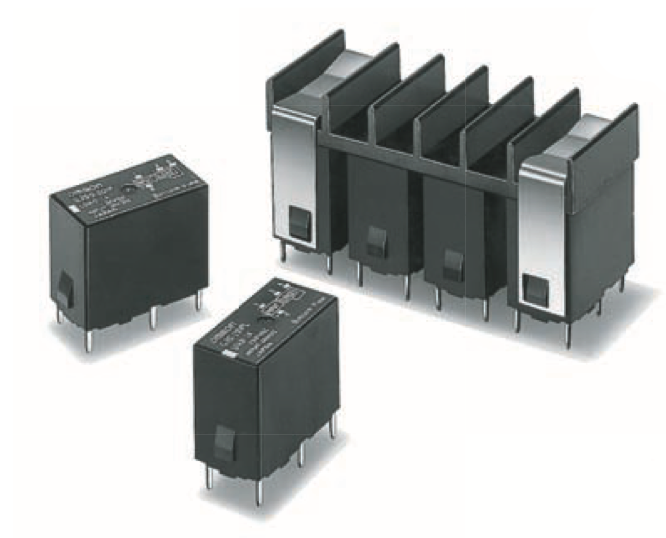

Ultra-small, dual in-line package(DIP) SSR.
Terminals are compatible with G6B Electromagnetic Relay's. Be capable mix with G6Bs as the application requires.
Close mounting possible. In addition, heat sink dedicated to this mounting style also available.
Both AC-and DC-load versions available.
High isolation of 2,500 VAC between input and output.
Built-in varistor effectively absorbs external surges (for AC switching).

Item	G3S-201PL/201PL-PD	G3SD-Z01P/Z01P-PD
Operate time	1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.	1 ms max.
Output ON voltage drop	1.6V (RMS) max.	1.5V max.
Leakage current	2 mA (at 200 VAC)	0.1mA max.(at 26VDC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dlelectric strength	2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	1,000m/s²
Storage temperature	-30ºC to 100ºC (with no icing or condensation)
Ambient operating temperature	-30ºC to 80ºC (with no icing or condensation)
Ambient operating humidity	45% to 85%RH
Weight	Approx.13g

Document	File Type	File Size	Download
G3S/G3SD Series Datasheet	PDF	591 KB
