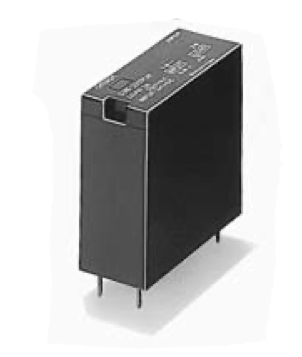

Ratings / Characteristics

Item G3R-102PLN G3R-102PN G3R-202PLN G3R-202PN G3RD-X02PN/-101PN
Operate time 1 ms max. 1/2 of load power
source cycle + 1
ms max.		 1 ms max. 1/2 of load power
source cycle + 1
ms max.		 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max. 1 ms max.
Output ON voltage
drop		 1.6V (RMS) max. 1.5V max.
Leakage current 2mA max.(at 100 VAC) 2mA max.(at 100VAC)
5mA max.(at 200VAC)		 0.1mA max.(at 125 VDC)
0.1mA max.(at 50 VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dlelectric strength 2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000m/s2
Storage temperature 30°C to 80°C (with no icing or condensation)
Ambient operating temperature 30°C to 100°C (with no icing or condensation)
Ambient operating humidity 45% to 85%RH
Weight Approx. 12g (1-A load model), Approx. 18 g (2-A LOAD, DC output model)
