4.5-mm thin design for high-density PCB applications.
DC input and AC output for applicable load of 1A (at 40°C) and 2A (at 25°C).

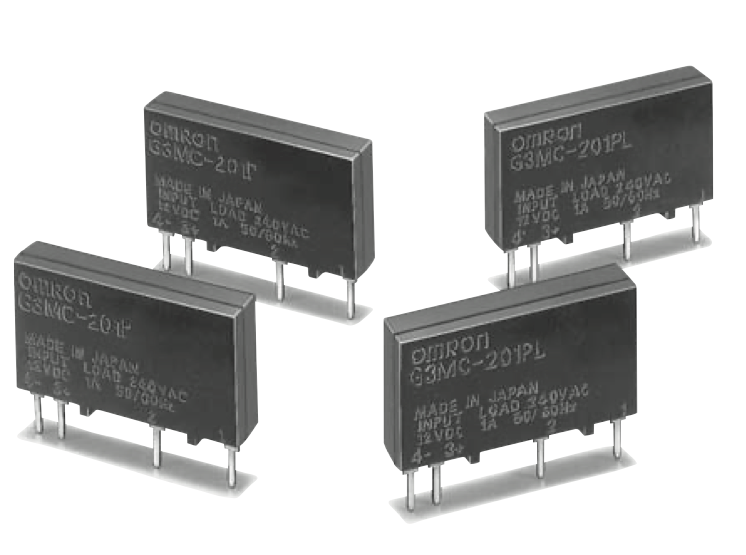

Compact, thin-profile SSR of monoblock construction with an all-in-one lead frame incorporates a PCB, terminals and heat sink

Item	G3MC-101P(-VD)	G3MC-101PL(-VD)	G3MC-201P(-VD) (-1) G3MC-202P(-VD) (-1)	G3MC-201PL(-VD) (-1) G3MC-202PL(-VD) (-1)
Operate time	1/2 of load power source cycle + 1 ms max.	1 ms max.	1/2 of load power source cycle + 1 ms max.	1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.
Output ON voltage drop	1.6 V (RMS) max.
Leakage current	1 mA max. (at 100 VAC)		1.5 mA max. (at 200 VAC)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dlelectric strength	2,500 VAC, 50/60 Hz for 1 min between input and output (3,000 VAC, 50/60 Hz for 1 min for G3MC-□□□-VD-1)
Vibration resistance	10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Shock resistance	1,000m/s²
Storage temperature	-30ºC to 100ºC (with no icing or condensation)
Ambient operating temperature	-30ºC to 80ºC (with no icing or condensation)
Ambient operating humidity	45% to 85%RH
Weight	Approx. 2.5 g (Approx. 3.8 g for G3MC-202P(L)(-VD)(-1)
