Ratings / Characteristics

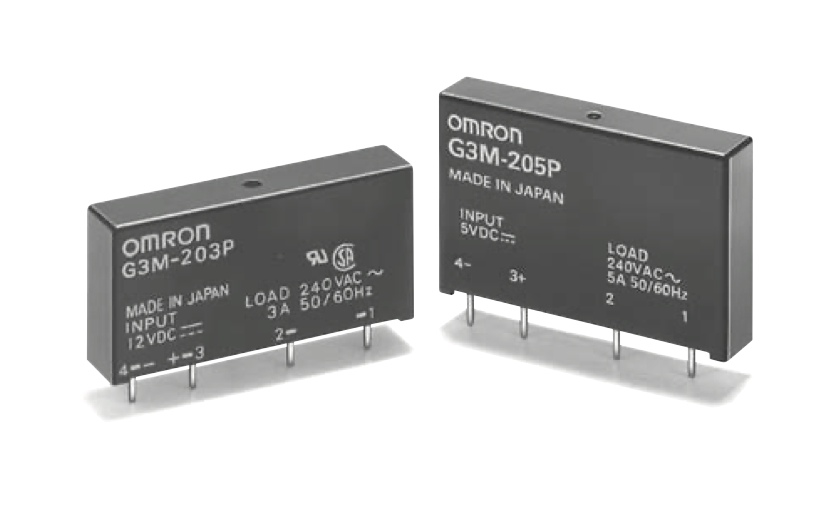

Item G3M-203P(L) G3M-205P(L)
Operate time G3M-□□□PL: 1 ms max.
G3M-□□□P: 1/2 of load power source cycle + 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6V (RMS) max.
Leakage current 1.5 mA max. (at 200 VAC)
Insulation resistance 1,000MΩ min.(at 500 VDC)
Dlelectric strength 2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000m/s2
Storage temperature -30°C to 80°C (with no icing or condensation)
Ambient operating temperature -30°C to 100°C (with no icing or condensation)
Ambient operating humidity 45% to 85%RH
Weight Approx.15g Approx.25g
