Ratings / Characteristics

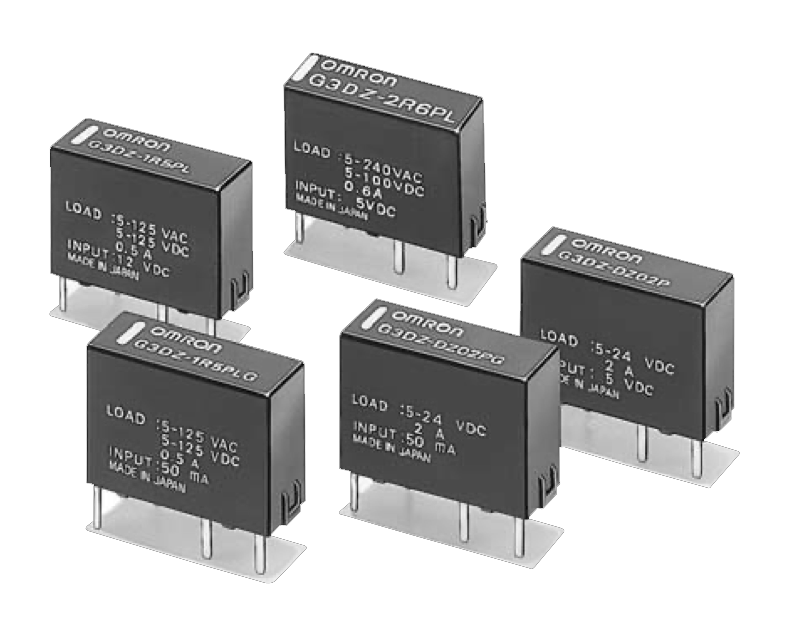

Item G3DZ-2R6PL G3DZ-1R5PL G3DZ-1R5PLG G3DZ-DZ02P G3DZ-DZ02PG
Operate time *1 6 ms max.
Release time *1 10 ms max.
Output ON voltage drop *1

2.4 Ω max.

 3.0 Ω max. 0.15 Ω max.
Leakage current at OFF state 10 μA max. (at 125 VDC)
100 μA max. (at 200 VAC)		 10 μA max. (at 125 VDC)
50 μA max. (at 100 VAC)		 10 μA max. (at 26.4 VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dlelectric strength 2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000m/s2
Storage temperature -30ºC to 100ºC (with no icing or condensation)
Ambient operating temperature -30ºC to 80ºC (with no icing or condensation)
Ambient operating humidity 45% to 85%RH
Weight Approx. 3.1 g Approx. 2.8 g Approx. 2.4 g Approx. 2.6 g Approx. 2.4 g

1.Measurement conditions:
For G3DZ-2R6PL/-1R5PL/-DZ02P, the values are under the measurement conditions whereby rated voltages are applied to the input.
For G3DZ-1R5PLG/-DZ02PG, the values are measured with 6.25 mA current applied to the input.
