Ratings / Characteristics

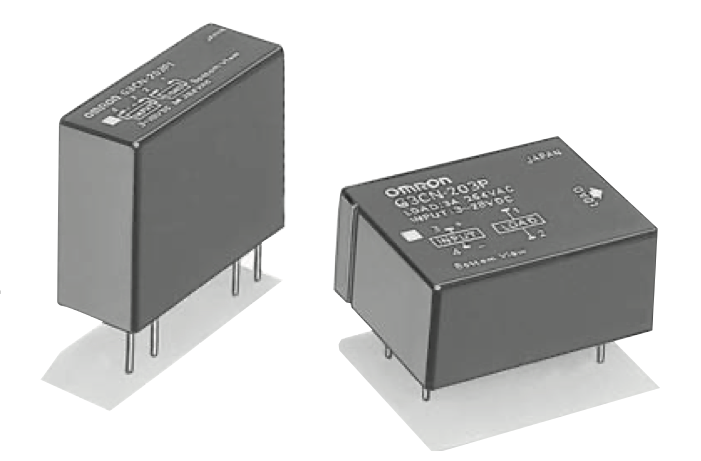

Item G3CN-202P(1)
G3CN-203P(1)		 G3CN-202PL(1)
G3CN-203PL(1)		 G3CN-DX02P(1)
G3CN-DX03P(1)
Operate time 1/2 of load power source cycle + 1 ms max. 1 ms max. 0.5 ms max.
Release time 1/2 of load power source cycle + 1 ms max. 1/2 of load power source cycle + 1 ms max. 2 ms max.
Output ON voltage drop 1.6 V (RMS) max. 1.5 V max.
Leakage current 5 mA max. (at 100 VAC)
10 mA max. (at 200 VAC)		 2.5 mA max. (at 100 VAC)
5 mA max. (at 200 VAC)		 5 mA max. (at 50 VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dlelectric strength 2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000m/s2
Storage temperature -30℃ to 80℃ (with no icing nor condensation)
Ambient operating temperature -30℃ to 100℃ (with no icing nor condensation)
Ambient operating humidity 45% to 85%RH
Weight Approx. 25 g
