SCCR of 10kA (UL 508). *2
Surge pass protection improved surge dielectric strength for output currents. (OMRON testing)

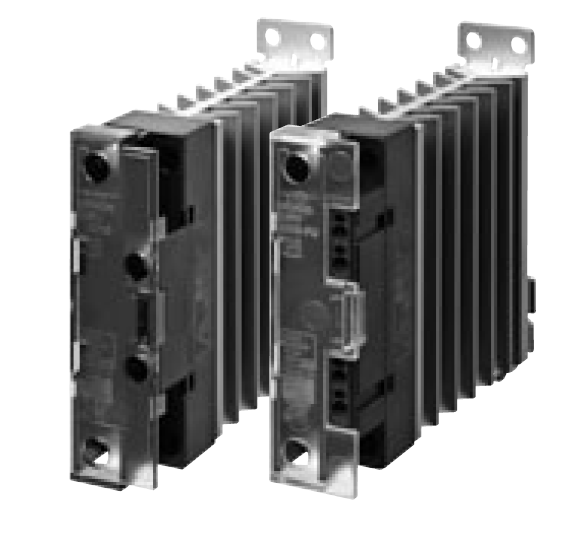

Both push-in and screw terminal input terminals available.
Mount to DIN Track or with screws.
Conforms to cULus and EN standards (TÜV certification).
RoHS compliant.

Item	G3PJ-2[][]B(-PU)	G3PJ-5[][]B(-PU)
Operate time	1/2 of load power source cycle + 1 ms max
Release time	1/2 of load power source cycle + 1 ms max
Output ON voltage drop	1.6 V (RMS) max.	1.8 V (RMS) max.
Leakage current	10 mA max. (at 240 VAC)	20 mA max. (at 480 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dlelectric strength	2,500 VAC 50/60 Hz for 1 min	4,000 VAC 50/60 Hz for 1 min
Vibration resistance	10 to 55 to10 Hz, 0.35 mm single amplitude (0.7 mm double amplitude) (Mounted to DIN track)
Shock resistance	Destruction: 300 m/s² (Mounted to DIN track)
Storage temperature	-30 to 100°C (with no icing or condensation)
Ambient operating temperature	-30 to 80°C (with no icing or condensation)
Ambient operating humidity	45% to 85%RH
Weight	Approx. 240 g
SCCR (UL508)	5 kA	10 kA

Document	File Type	File Size	Download
G3PJ Series Datasheet	PDF	3.0 MB
