Ratings / Characteristics

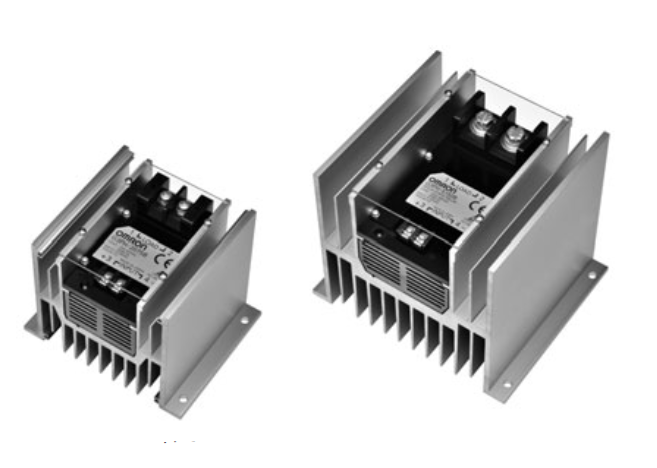

Model G3PH-
2075B		 G3PH-
2150B		 G3PH-
5075B		 G3PH-
5150B		 G3PH-
2075BL		 G3PH-
2150BL		 G3PH-
5075BL		 G3PH-
5150BL
Operate time 1/2 of load power source cycle + 1 ms max.
for DC input
3/2 of load power source cycle + 1 ms max.
for AC input		 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max.
for DC input
3/2 of load power source cycle + 1 ms max.
for AC input		 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6 V (RMS) max.
Leakage current 30 mA max.
(at 240 VAC)		 60 mA max.
(at 480 VAC)		 30 mA max.
(at 240 VAC)		 60 mA max.
(at 480 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dlelectric strength 2,500 VAC, 50/60 Hz for 1 min
Vibration resistance 10 to 55 to10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude)
Acceleration of 50 m/s2 for 50 min in X, Y and Z directions (10 sweeps of 5 min each = 50 min
total)
Shock resistance 500 m/s2, 3 times in X, Y, and Z directions
Storage temperature -30 to 100°C (with no icing or condensation)
Ambient operating temperature -30 to 80°C (with no icing or condensation)
Ambient operating humidity 45% to 85%RH
Weight Approx.
1.8 kg		 Approx.
3.0 kg		 Approx.
1.8 kg		 Approx.
3.0 kg		 Approx.
1.8 kg		 Approx.
3.0 kg		 Approx.
1.8 kg		 Approx.
3.0 kg
