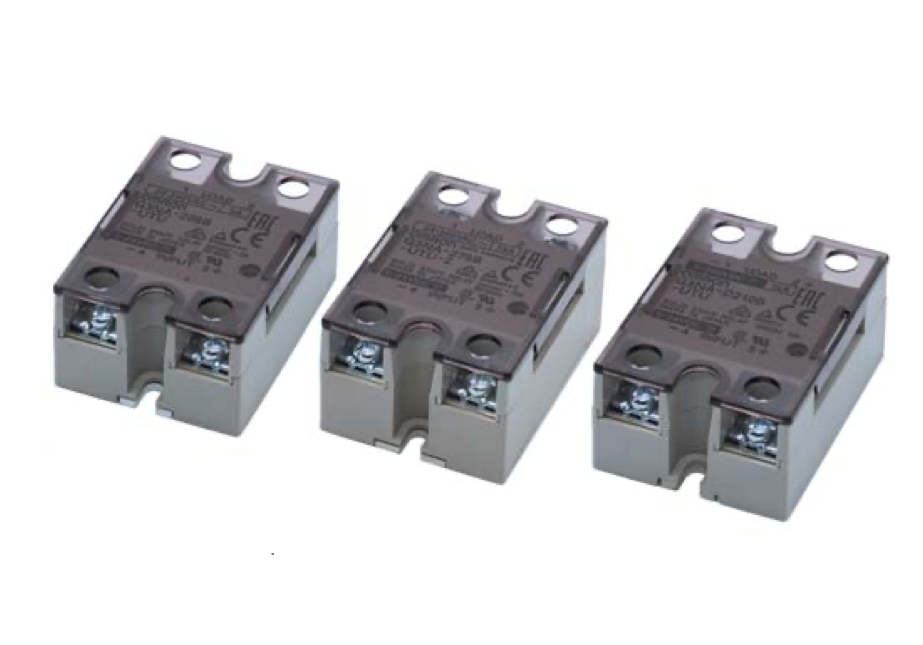

Ratings / Characteristics

Item G3NA-
205B-
UTU		 G3NA-
210B-
UTU		 G3NA-
220B-
UTU		 G3NA-
225B-
UTU		 G3NA-
240B-
UTU		 G3NA-
240B-
UTU		 G3NA-
275B-
UTU-2		 G3NA-
290B-
UTU-2
Operate time 1/2 of load power source cycle + 1 ms max. (DC input)
3/2 of load power source cycle + 1 ms max. (AC input)
Release time 1/2 of load power source cycle + 1 ms max. (DC input)
3/2 of load power source cycle + 1 ms max. (AC input)
Output ON voltage drop 1.6 V (RMS) max.
Leakage current 5 mA max. (at 100 VAC)
10 mA max. (at 200 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dlelectric strength 2,500 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude
Shock resistance Destruction: 1,000m/s2
Ambient operating temperature Operating:-30°C to 80°C (with no icing or condensation)
Storage:-30°C to 100°C (with no icing or condensation)
Ambient operating humidity Operating: 45% to 85%
Weight Approx. 60 g Approx. 70 g Approx. 120 g


Item G3NA-
410B-
UTU		 G3NA-
420B-
UTU		 G3NA-
425B-
UTU-2		 G3NA-
440B-
UTU-2		 G3NA-
450B-
UTU-2		 G3NA-
475B-
UTU-2		 G3NA-
490B-
UTU-2		 G3NA-
D210B-UTU
Operate time 1/2 of load power source cycle + 1 ms max. (DC input)
3/2 of load power source cycle + 1 ms max. (AC input)		 1 ms max. (DC input)
30 ms max. (AC input)
Release time 1/2 of load power source cycle + 1 ms max. (DC input)
3/2 of load power source cycle + 1 ms max. (AC input)		 5 ms max. (DC input)
30 ms max. (AC input)
Output ON voltage drop 1.8 V (RMS) max. 1.5 V max.
Leakage current 10 mA max. (at 200 VAC)
20 mA max. (at 400 VAC)		 5 mA max.
(at 200 VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dlelectric strength 4,000 VAC, 50/60 Hz for 1 min 2,500 VAC, 50/60 Hz
for 1 min
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance Destruction: 1,000m/s2
Ambient operating temperature Operating:-30°C to 80°C (with no icing or condensation)
Storage:-30°C to 100°C (with no icing or condensation)
Ambient operating humidity Operating: 45% to 85%
Weight Approx. 80 g Approx. 120 g Approx. 70 g
