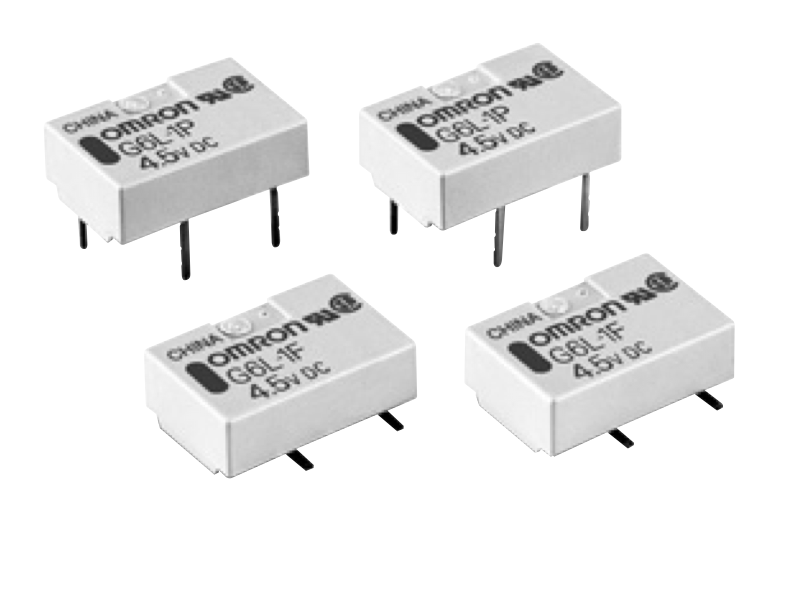

Extremely Thin SPST-NO Flat Relay, One of the Thinnest Relays in the World



• For high-density mounting and slim finished packaging, G6L uses 20% less mounting area and 67% less volume in comparison with the G5V-1 relay.
• Measures just 7.0 (W) x 10.6 (L) x 4.2 (H) mm for surface- mount or 3.8 (H) for through-hole.
• High dielectric strength: 1,000 VAC between coil and contacts and 750 VAC between contacts of the same polarity.
• Conforms to FCC Part 68 impulse withstand voltage rating of 1.5kV for 10 x 160 μs.
• Conforms to UL60950 (File No. E41515) / CSA C22.2 No. 60950 (File No. LR31928).
• Use of lead completely eliminated.



Downloads

Document	File Type	File Size	Download
G6L Series Datasheet	PDF	182 KB
