Ratings / Characteristics

Classification Standard High-capacity

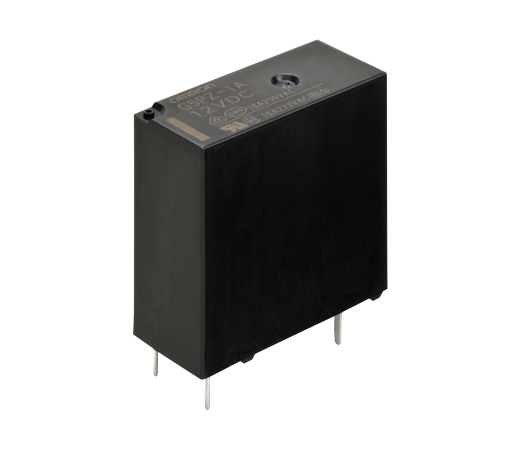

Model G5PZ-1A G5PZ-1A-E
Contact resistance*1 100 mΩ max.
Operate time 15 ms max.
Release time 5 ms max.
Insulation resistance *2 1,000 MΩ min.
Dielectric strength Between coil and contacts 4,000 VAC 50/60 Hz 1 min
Between contacts of the same polarity 1,000 VAC 50/60 Hz 1 min
Impulse withstand voltage Between coil and contacts 10 kV (1.2 x 50 μs)
Vibration resistance Destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude
(1.5 mm double amplitude)
Malfunction 10 to 55 to 10 Hz, 0.75 mm single amplitude
(1.5 mm double amplitude)
Shock resistance Destruction 1,000 m/s2
Malfunction 200 m/s2
Durability Mechanical 2,000,000 operations min.
Electrical (resistive load) 100,000 operations at 250 VAC, 16 A 50,000 operations at 250 VAC, 20 A
Failure rate (P level)
(reference value) *3		 5 VDC 100 mA
Ambient operating temperature -40 to 70°C
(with no icing or condensation)
Ambient operating humidity 5% to 85%
Weight Approx. 10.5 g

Note: Values in the above table are the initial values at 23°C.
1. Measurement conditions: 5 VDC, 1 A, voltage drop method
2. Measurement conditions: Measured at the same points as the dielectric strength using a 500 VDC ohmmeter.
3. This value was measured at a switching frequency of 120 operations/min.
