Omron's XS6W Ethernet Patch Cables are Suitable for In‐Panel Connections


OMRON announces the release of the new XS6W Ethernet Patch Cable, expanding the extensive XS5‐T and XS6‐T Industrial Connector portfolio. Using LSZH cables terminated with standard RJ45 connectors, these cables meet the stringent requirements of CAT6a communication protocols.

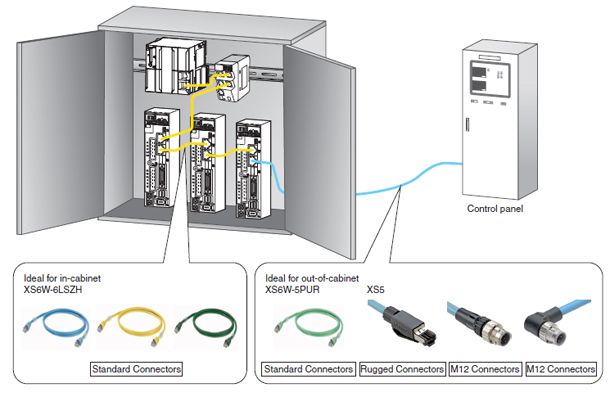

  • Patch cables for internal wiring meet CAT6a ratings. Cables for external wiring meet CAT5e requirements.
  • Internal Patch Cables are created using Standard RJ45 connectors and LSZH* or PUR cables. Ruggedized RJ45 or Omron's SmartClick XS5 M12 connectors and PUR cables are used for external wiring models.
  • Both internal and external cables are double shielded, reducing EMI in industrial environments.
  • Patch Cables are available in 12 lengths from 0.2 to 20 m. Cables for external wiring are available in 10 lengths from 0.5 to 20 m.
  • The use of standard RJ45 connectors and LSZH cables allows for a sharper bending radius, improving usability. Conventional assemblies require 89mm, while the new XS6W Patch Cables require only 58 mm).
  • The Patch Cables for internal panel wiring are available in blue, yellow or green.
  • XS6G Field Wiring type RJ45 plugs allow for fast connections and cable termination, on‐site.



Applications

Internal and External wiring of Industrial Equipment and panels that require compliance with EtherCAT and other Industrial Ethernet Network communications protocols. XS6W is a perfect companion to Omron's Sysmac product line.
