Series	Image	Features
ST021xxHDNN AST021		Centerline: 2.50 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 0,5 mm² Connection capacity multi-wire: 0,2 - 0,5 mm²
ST041xxDDNN AST041		Centerline: 2.50 mm Direction of connection: 45 ° Connection capacity single-wire: 0,2 - 0,5 mm² Connection capacity multi-wire: 0,2 - 0,5 mm²
ST072xxHGNN AST072		Centerline: 2.54 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 0,5 mm² Connection capacity multi-wire: 0,2 - 0,5 mm²

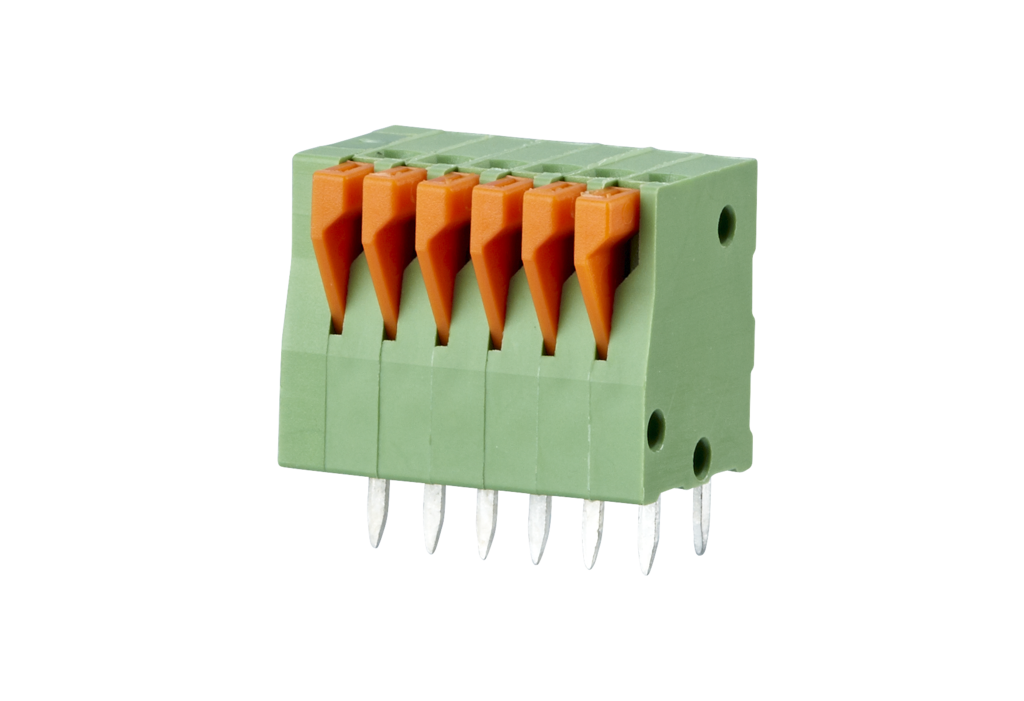

ST072xxVGNN AST082		Centerline: 2.54 mm Direction of connection: 0 ° Connection capacity single-wire: 0,2 - 0,5 mm² Connection capacity multi-wire: 0,2 - 0,5 mm²
ST024xxHDNC AST024		Centerline: 3.81 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 0,5 mm² Connection capacity multi-wire: 0,2 - 0,5 mm²
ST025xxHDNC AST025		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,0 mm² Connection capacity multi-wire: 0,2 - 2,0 mm²
ST045xxDDNC AST045		Centerline: 5.00 mm Direction of connection: 45 ° Connection capacity single-wire: 0,2 - 1,5 mm² Connection capacity multi-wire: 0,2 - 1,5 mm²
ST055xxHBNC AST055		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST065xxHDNN AST065		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,0 mm² Connection capacity multi-wire: 0,2 - 2,0 mm²
ST095xxHDNN AST095		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST105xxVDNN AST105		Centerline: 5.00 mm Direction of connection: 0 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST125xxVDNN AST125		Centerline: 5.00 mm Direction of connection: 0 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST135xxDDNC AST135		Centerline: 5.00 mm Direction of connection: 45 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST145xxVDNN AST145		Centerline: 5.00 mm Direction of connection: 0 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST185xxLDNN AST185		Centerline: 5.00 mm Direction of connection: 60 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
SR255xxHBNC		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

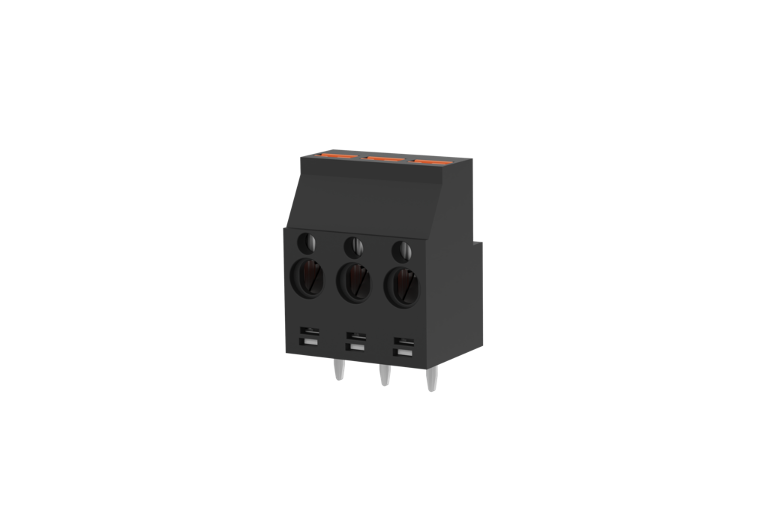

SR25503HBNC, 3-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

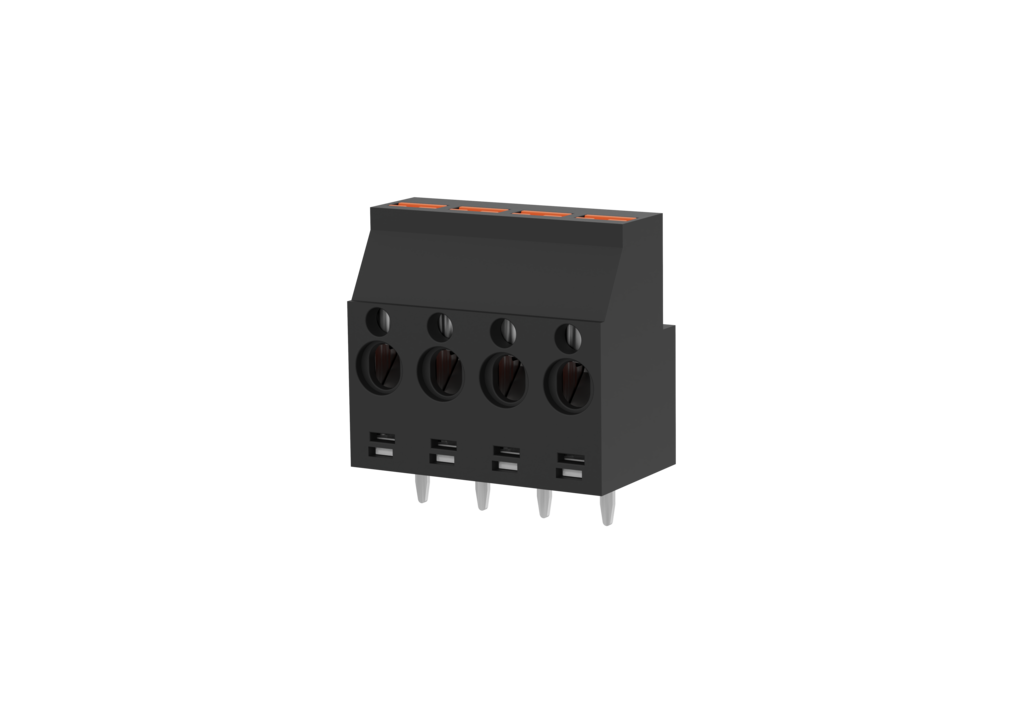

SR25504HBNC, 4-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

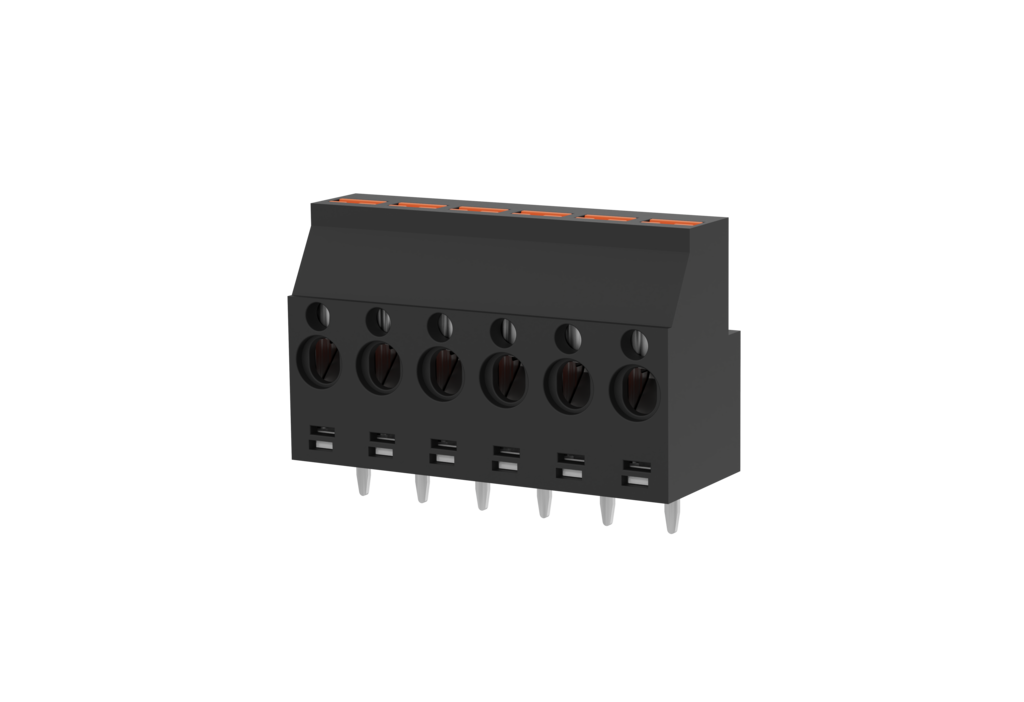

SR25506HBNC, 6-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

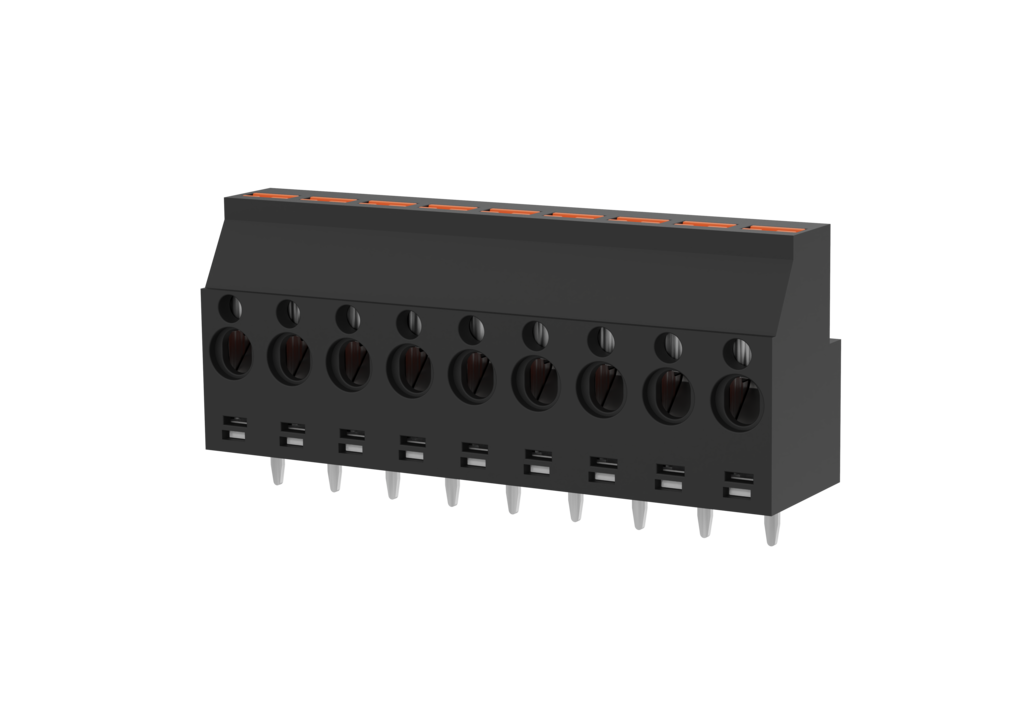

SR25509HBNC, 9-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST255xxHBNN		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

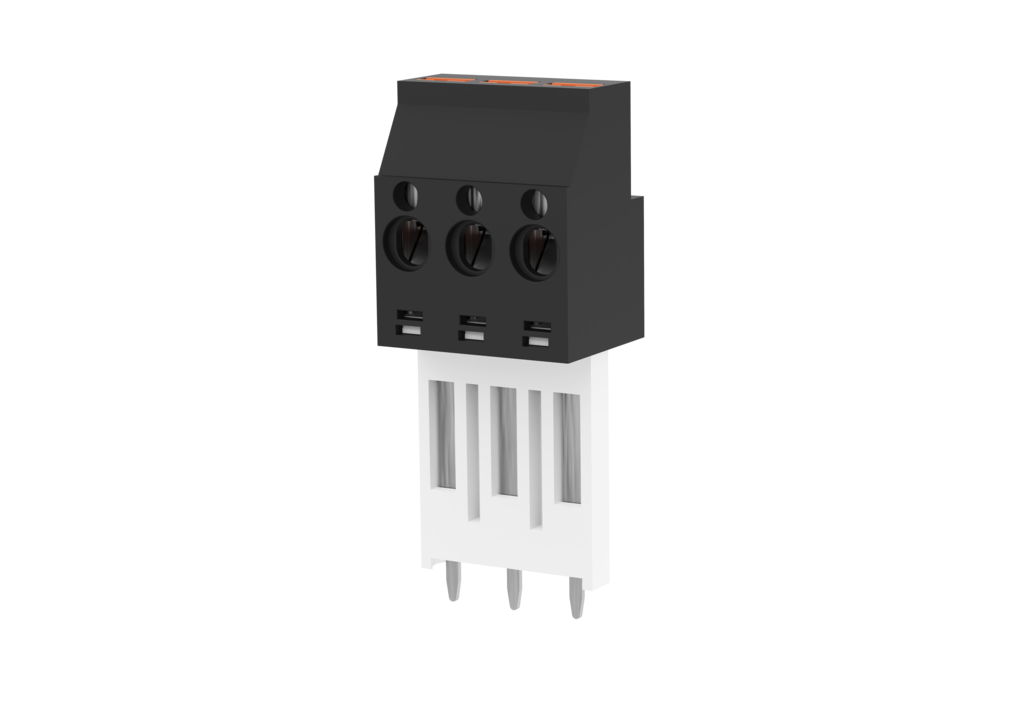

ST25503HBNN, 3-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

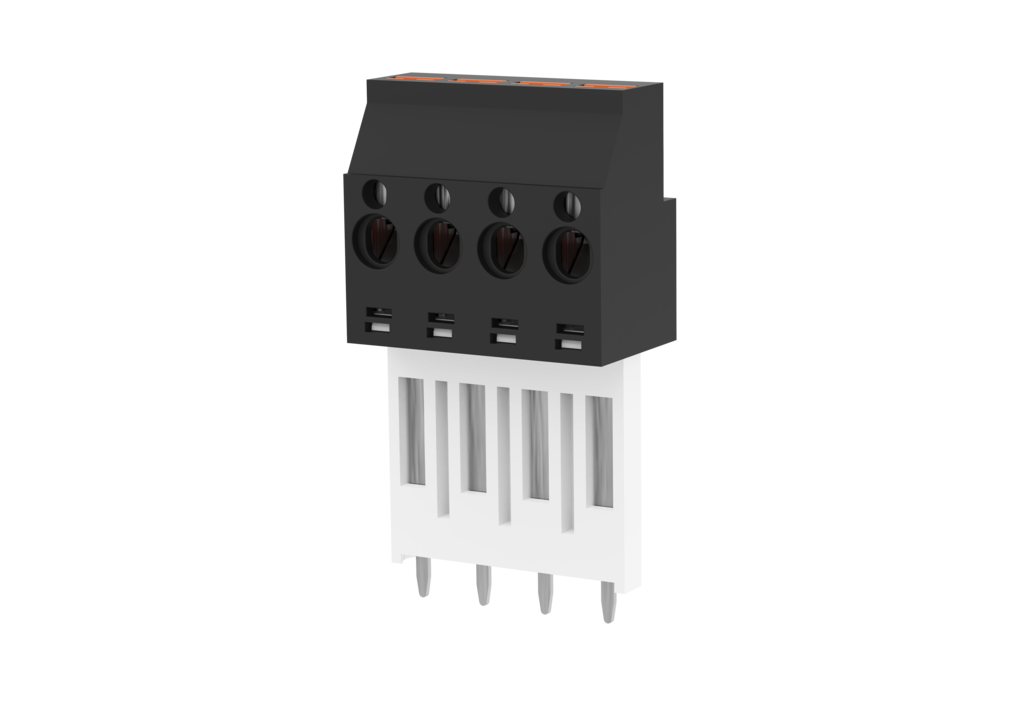

ST25504HBNN, 4-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

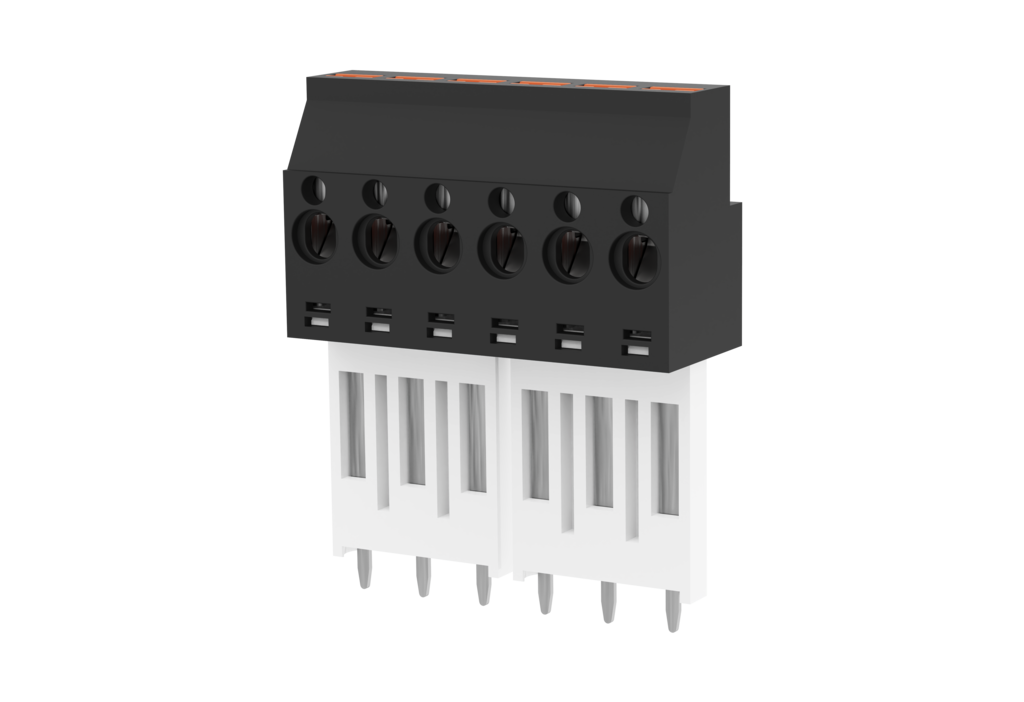

ST25506HBNN, 6-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²

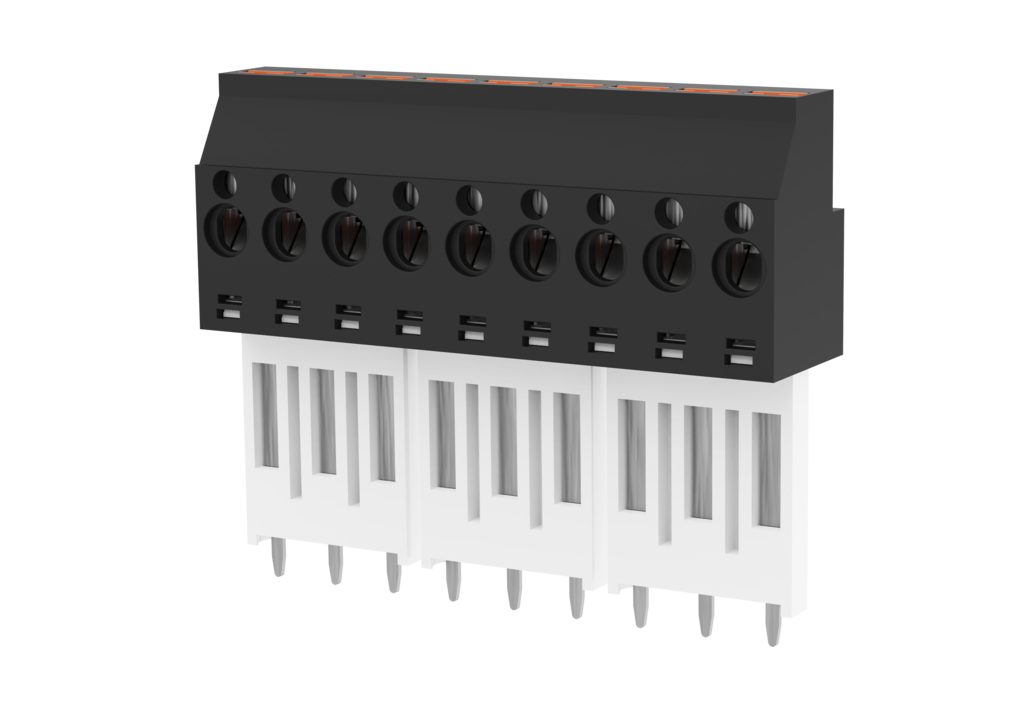

ST25509HBNN, 9-pole		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST255XXHBNL		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST255XXHBNR		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST255XXHDNL		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST255XXHDNR		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST176xxLDNN AST176		Centerline: 5.08 mm Direction of connection: 60 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST186xxLDNN AST186		Centerline: 5.08 mm Direction of connection: 60 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST027xxHDNC AST027		Centerline: 7.50 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST047xxDDNC AST047		Centerline: 7.50 mm Direction of connection: 45 ° Connection capacity single-wire: 0,2 - 1,5 mm² Connection capacity multi-wire: 0,2 - 1,5 mm²
ST057xxHBNC AST057		Centerline: 7.50 mm Direction of connection: 90 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST137xxDDNC AST137		Centerline: 7.50 mm Direction of connection: 45 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST177xxLDNN AST177		Centerline: 7.50 mm Direction of connection: 60 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST187xxLDNN AST187		Centerline: 7.50 mm Direction of connection: 60 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST108xxVDNN AST108		Centerline: 7.62 mm Direction of connection: 0 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST128xxVDNN AST128		Centerline: 7.62 mm Direction of connection: 0 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
ST188xxLDNN AST188		Centerline: 7.62 mm Direction of connection: 60 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST029xxHDNC AST029		Centerline: 10.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 2,0 mm² Connection capacity multi-wire: 0,2 - 2,0 mm²
ST059xxHBNC AST059		Centerline: 10.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,08 - 2,5 mm² Connection capacity multi-wire: 0,08 - 2,5 mm²
ST139xxDDNC AST139		Centerline: 10.00 mm Direction of connection: 45 ° Connection capacity single-wire: 0,2 - 2,5 mm² Connection capacity multi-wire: 0,2 - 2,5 mm²
