Series	Image	Features
SR213xxVBNC AST213		Centerline: 3.50 mm Direction of connection: 0 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR213xxHBNC AST223		Centerline: 3.50 mm Direction of connection: 90 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR215xxVBNC AST215		Centerline: 5.00 mm Direction of connection: 0 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR215xxHBNC AST225		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR215xxDBNC AST235		Centerline: 5.00 mm Direction of connection: 45 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR215xxHBPC		Centerline: 5.00 mm Direction of connection: 90 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR215xxVBPC		Centerline: 5.00 mm Direction of connection: 0 ° Connection capacity single-wire: 0,08 - 1,5 mm² Connection capacity multi-wire: 0,08 - 1,5 mm²
SR207XXDBVN		Centerline: 7.50 mm Direction of connection: 45 ° Connection capacity single-wire: 0,5 - 2,5 mm² Connection capacity multi-wire: 0,5 - 2,5 mm²

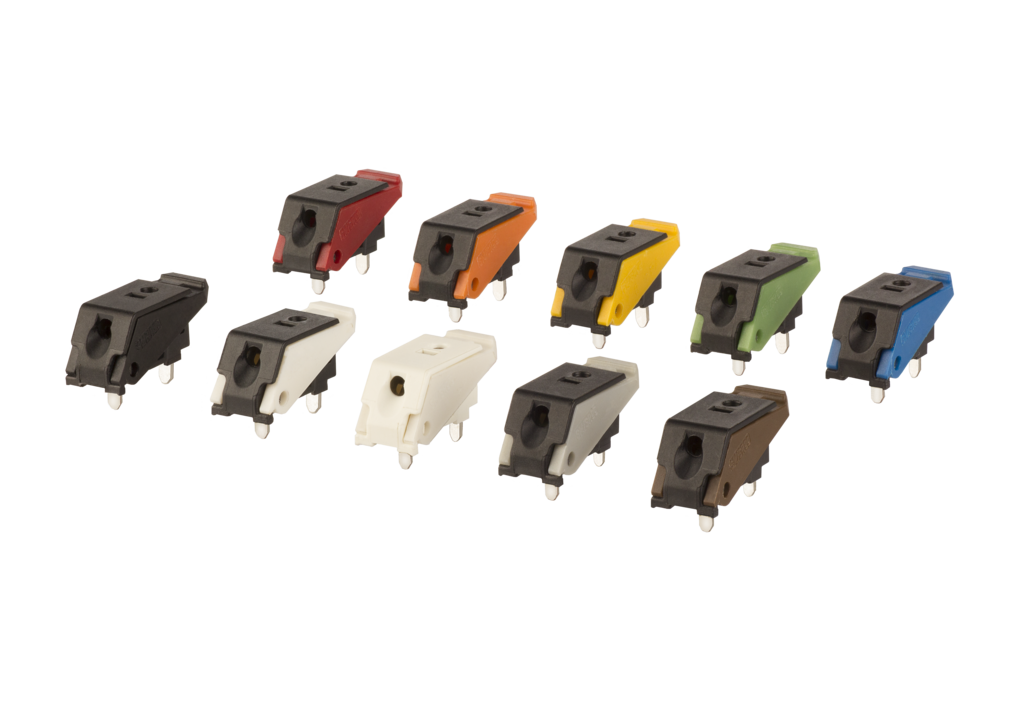

SR99SxxVBNN / SR99SxxVWNN		Centerline: Single poles Direction of connection: 90 ° Connection capacity single-wire: 0,2 - 1,5 mm² Connection capacity multi-wire: 0,2 - 1,5 mm²
