Home > Suppliers > Macromatic > Products > Time Delay Relays

Macromatic offers a wide variety of time delay relays (sometimes referred to as timing relays or timers). First choose the type of mounting configuration required for your application and then select from a variety of functions, time setting methods & output configurations:

Plug-in:Plug-in: used with 8 or 11 pin octal sockets. Allows for easy replacement without having to remove any control wiring. Macromatic sockets can either be mounted on 35mm DIN track or to the panel with two screws. All Macromatic plug-in time delay relays are UL Listed for use in both United States and Canada (cULus) when used with the appropriate Macromatic socket as well as Component Recognized (cURus) using any recognized socket.

Encapsulated:typically selected when low-cost and/or compact size is preferred. Also used when solid state output is required for high-duty cycle applications. These products are encapsulated for protection against harsh environments. All Macromatic encapsulated time delay relays are UL Component Recognized (UR).

17.5mm Modular:narrow compact design is ideal for saving space in control panels. These products are designed for easy mounting to 35mm DIN track. All Macromatic 17.5mm time delay relays are UL Listed for use in the United States and Canada (cULus).

1/16 DIN:normally selected when the application calls for accessibility of the display and/or switches without opening the panel door. The product is mounted in the door and uses back-mounted sockets for wiring. However, they can also be base or track-mounted using a standard octal socket. All Macromatic 1/16 DIN time delay relays are UL Component Recognized (UR).

Part Numbers

Image	Series	Time Delay Setting & Ranges	Functions	Input Voltges	Output	Mounting
	THR-1 Series Relay Output	Analog-Set 0.1 SEC - 100 HR	Single-Function	12VDC, 24VAC/DC, 120VAC/DC, 240VAC	10A SPDT Relay	2” x 2” Encapsulated Panel Mounted with One Screw

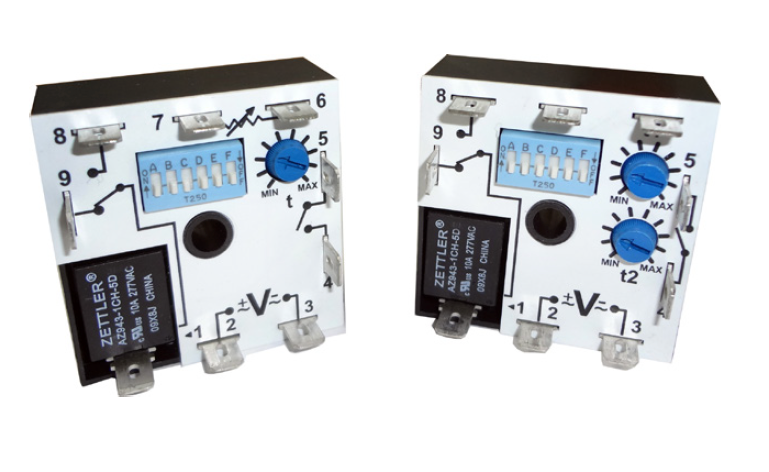

	THR-3 Relay Output	Analog-Set 0.1 SEC - 100 HR	Multi-Function (4)	24-240VAC, 12-125VDC	10A SPDT Relay	2” x 2” Encapsulated Panel Mounted with One Screw

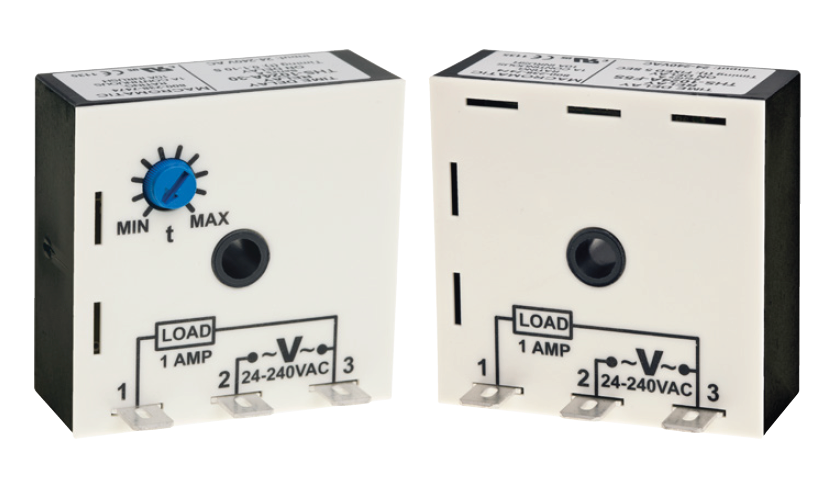

	THS-1 Series Solid State Output	Analog-Set 0.1 SEC - 100 HR	Single-Function	24-240VAC, 12-48VDC	1A SPNO Solid State	2” x 2” Encapsulated Panel Mounted with One Screw
	THL-1 Series Solid State Inline (Series) Output	Analog-Set 0.1 SEC - 100 HR	Single-Function	24-240VAC, 12-48VDC	1A SPNO Solid State	2” x 2” Encapsulated Panel Mounted with One Screw
	THL-8 Series Solid State Inline (Series) Output	Digital-Set 0.1 SEC - 10,230 SEC	Single-Function	12VDC, 24VAC/DC, 120VAC/DC, 240VAC	1A SPNO Solid State	2” x 2” Encapsulated Panel Mounted with One Screw
	TR-5 Series Standard	Analog-Set 0.05 SEC - 2 HR	Single-Function	24-240VAC & 12-125VDC	10A DPDT 10A SPDT Relay	Plug-in Utilizing Industry-Sandard 8 & 11 Pin Sockets
	TR-6 Series Time Ranger Programmable	Analog-Set Multi-Range 0.05 SEC - 100 HR	Multi-Function	12VAC/DC, 24VAC/DC, 120VAC/DC, 240VAC	10A DPDT Relay	Plug-in Utilizing Industry-Sandard 8 & 11 Pin Sockets
	TD-8 Series Time Ranger Digital-Set Programmable	Digital-Set Multi-Range 0.1 SEC - 1,023 HR	Multi-Function (16) & Single-Function	12VAC/DC, 24VAC/DC, 120VAC/DC, 240VAC	10A DPDT 10A SPDT Relay	Plug-in Utilizing Industry-Sandard 8 & 11 Pin Sockets
	TD-7 Series Time Ranger Digital-Set Programmable	Digital-Set Multi-Range 0.05 SEC - 999 HR	Multi-Function (10) & Single-Function	24-240VAC & 24-240VDC	10A DPDT 10A SPDT Relay	Plug-in Utilizing Industry-Sandard 8 & 11 Pin Sockets
	TAD Series Digital-Set 1/16 DIN	Digital-Set Multi-Range 0.01 SEC - 9,990 HR	Multi-Function (10)	24-240VAC & 24-240VDC	5A SPDT Relay	1/16 DIN (48mm²)
	TAA Series Analog-Set 1/16 DIN	Analog-Set Multi-Range 0.05 SEC - 100 HR	Multi-Function (6)-2 Versions	100-240VAC & 24-240VDC	5A DPDT & SPDT Timed & SPDT Instantaneous Relay	1/16 DIN (48mm²)
	TE-881 Series Programmable	Analog-Set 0.1 SEC - 10 DAYS	Multi-Function (10)	12-240V AC/DC	15A SPDT & DPDT Relay	17.5mm
	TE-6 Series Programmable	Analog-Set 0.1 SEC - 10 DAYS	Single-Function	12-240V AC/DC	10A SPDT Relay	17.5mm
