At less than one-third the size of similarly performing Class R fuses, current-limiting POWR-GARD® Class T fuses offer space-saving overcurrent and short-circuit protection solutions in applications requiring fuses with current ratings higher than 30 A. Be aware, however, that Class T fuses may provide protection only against short circuits when used with circuits carrying inductive loads. For applications where fuse size is not a principal concern, Littelfuse recommends JTD_ID series Class J fuses, LLRNK or LLSRK Class RK1 series fuses, or FLSR_ID series Class RK5 fuses.

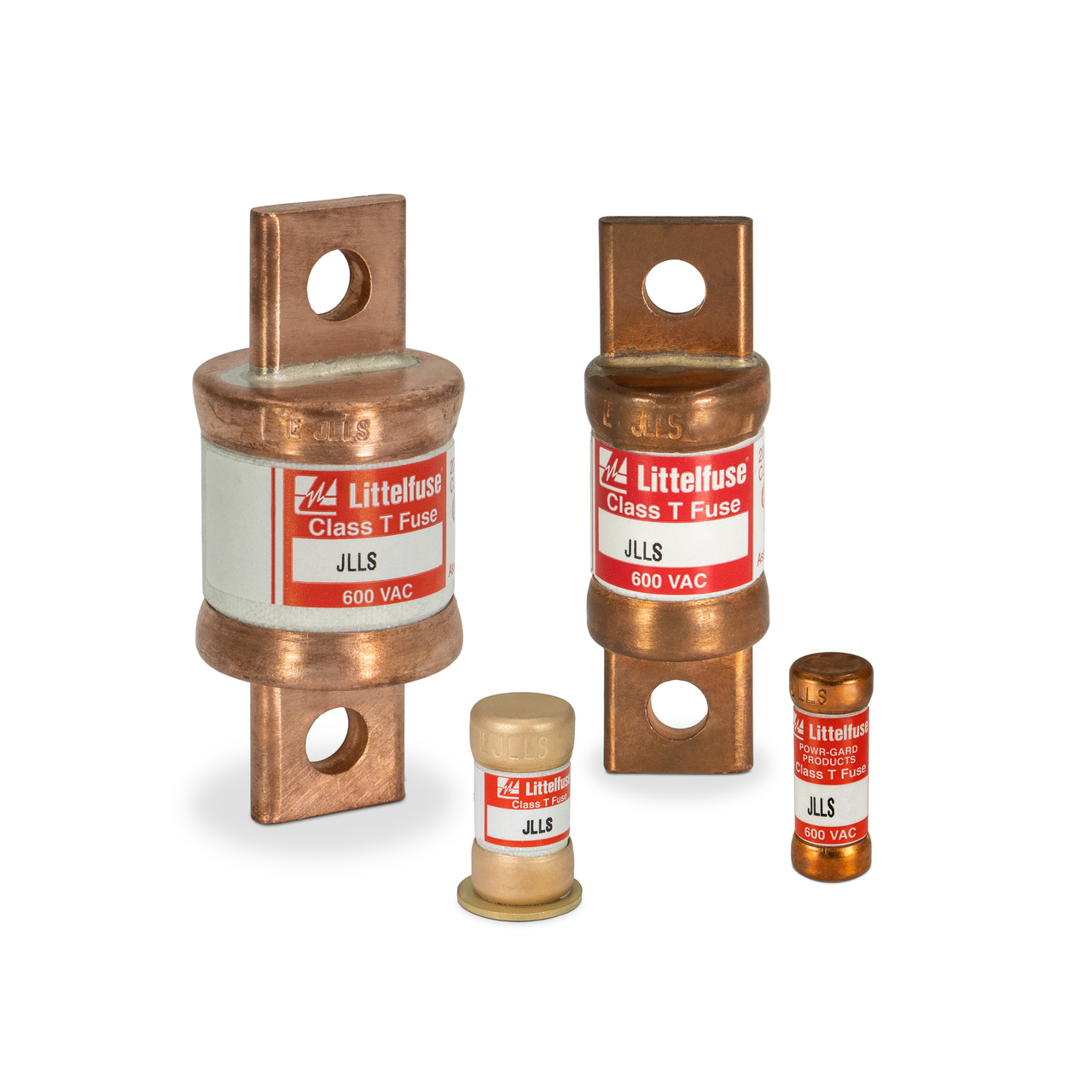

Littelfuse JLLS Series

The JLLS series fast-acting fuses are the most compact fuses available in ratings above 30 amperes — less than one-third the size of comparable Class R fuses. The JLLS fuses are used for short-circuit protection of drives and surge- sensitive components. When rated in accordance with the NEC, these fuses provide fast-acting overload and short-circuit protection for non-inductive circuits and equipment. Main switches containing JLLS fuses can be used to provide compact protection...

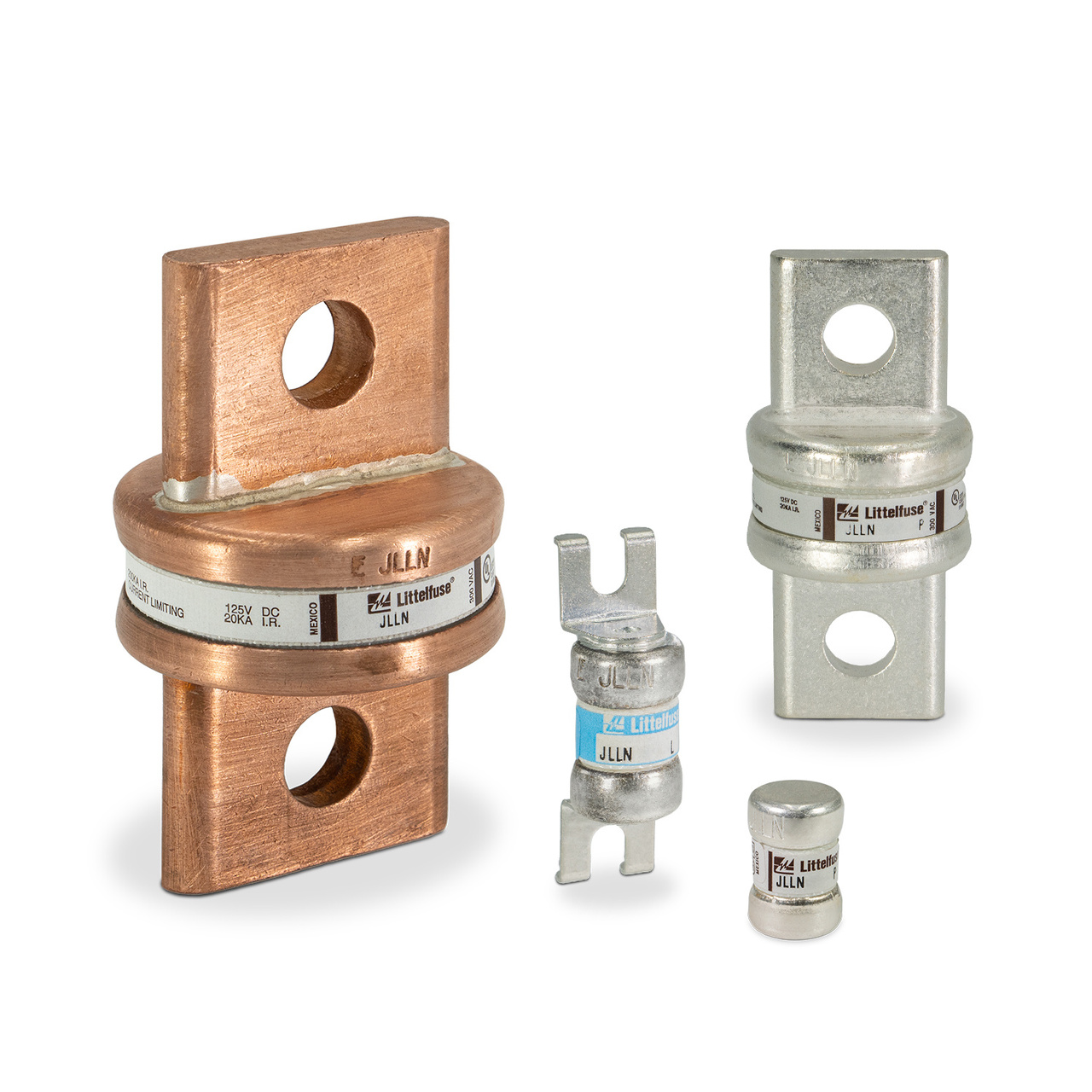

Littelfuse JLLN Series

The JLLN series fast-acting fuses are the most compact fuses available in ratings above 30 amperes — less than one-third the size of comparable Class R fuses. The JLLN fuses are used for short-circuit protection of drives and surge- sensitive components. When rated in accordance with the NEC, these fuses provide fast-acting overload and short-circuit protection for non-inductive circuits and equipment. Main switches containing JLLN fuses can be used to provide compact protection for meter stacks. It should be noted that molded case circuit breaker load centers...
