Kycon Modular Jacks can be used in computer, networking and telecommunication applications. Kycon offers single, stacked, vertical, and ganged options with a variety of available positions, number of contacts and mounting options. Other available options may include key options, panel stops, LED's, shielding, and magnetics.



Series Image Features
G1LX Series G1LX Series Modular Jack Right Angle Tab Down, Shielded w/ 10/100 Magnetics
G2LX Series G2LX Series Modular Jack Right Angle Tab Up, Shielded w/ 10/100 Magnetics
G3LX Series G3LX Series Modular Jack Vertical Magnetics
G7LX Series MODULAR JACKS AND PLUGS: G7LX-A Series RJ45 Modular Jack with 10/100 magnetics and POE, LEDs
  • Includes magnetics to support 10/100 Base-T applications POE compatible
  • LEDs for status indicators
  • Shielded for EMI suppression
  • Snap in retention pegs
G8X Series aaa RJ45 Modular Jack with 10/100 magnetics and POE
  • Includes magnetics to support 10/100 Base-T applications
  • POE compatible
  • LEDs for status indicators
G10X Series aaa Dual Stack RJ45 Modular Jack with Gigabit magnetics
  • Dual stacked RJ45 to reduce PCB footprint
  • Includes magnetics to support 1000 Base-T applications
  • Shielded for EMI suppression
  • Snap in retention pegs

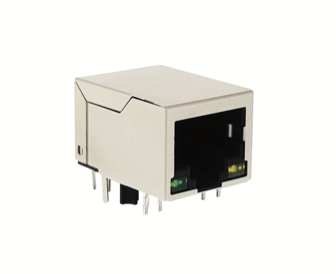

G15LX Series aaa 2.5G Modular Jack LEDs
  • 2.5 GHz Magnetics Built-in
  • Small Footprint
  • With or without EMI Tabs
  • LED
G16LX Series aaa Right Angle Modular Jack 5GHZ with LEDS
  • 5 GHz Magnetics Built-in, POE
  • 50u" Gold Plated Contacts
  • With or without EMI Tabs
  • LED

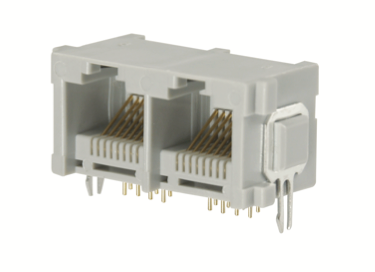

GAX Series aaa Right Angle Ganged Jack
  • Available in 6 and 8 Position Housings
  • Right Angle Version
  • Ribbed Pin Guides
  • Metal Locking Brackets
GDCX-P Series aaa Perpendicular Through Hole Modular Jacks
  • Available in 4, 6, and 8 Position Housings
  • Vertical Mount
  • Through Hole Contacts
GDLPX Series aaa Vertical Low Profile Modular Jack
  • Low Profile Design
  • Snap-In Board Retention Tabs
  • Fully Shielded for EMI/RFI Protection
GDLX Series aaa .492" Height PCB Mount Right Angle Modular Jack
  • Available in high temp for Reflow compatibility
  • Panel Stops, Shielding and Keying Options
  • Available Snap-In Board Retention Tabs
GDLX-SMT Series aaa .492" Height SMT Right Angle Modular Jack
  • Reflow compatible with SMT solder leads
  • Panel Stops, Shielding and Keying Options
  • Available Snap-In Board Retention Tabs

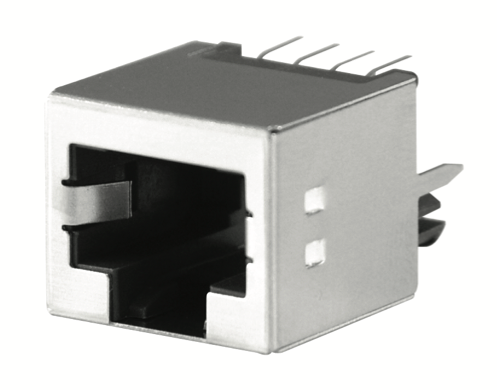

GDTX Series aaa Vertical CAT5 Fully Shielded Modular Jack
  • Fully Shielded to Reduce EMI/RFI
  • Snap in Board Retention Tabs
  • CSA/NRTL Certified File No. LR78160
  • Fully Shielded for Category 5 Application
GDWLX Series aaa Vertical PCB Mount Modular Jack
  • Easy Viewing LEDs to Act as Power/Transmit Indicators
  • Available Fully Shielded for EMI/RFI Protection
  • Available Through Hole
GDX Series aaa .592" Height PCB Mount Right Angle Modular Jack
  • 0.595" Height
  • Snap-In Board Retention Tabs
  • Panel Stops Available
  • Available in 4, 6 and 8 Position Housings
GLX Series aaa .570" Height PCB Mount Right Angle Modular Jack
  • 0.570" Height
  • Snap-In Board Retention Tabs
  • Available in 4, 6, 8 and 10 Position Housings
GMJXHT-MM-S-88 Series aaa Low Profile Mid Mount Modular Jack
  • Low Profile Design
  • Available in 8 Position Housing
  • Available Fully Shielded for EMI/RFI Protection
  • Mid Mount

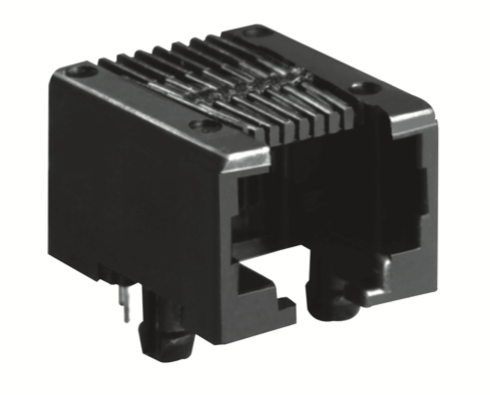

GMX Series aaa .45" Height Low Profile PCB Mount Right Angle
  • 0.45” Height
  • Low Profile Design Suitable for PC Add-On Board Applications
  • Snap in Board Retention Tabs
  • Available in 4, 6, 8, and 10 Position Housings
  • Available Fully Shielded for EMI/RFI Protection
GMXHT Series aaa High Temperature Low Profile Modular Jack
  • 0.45” Height
  • Low Profile Design Suitable for PC Add-on Board Applications
  • Snap in Board Retention Tabs
  • Available in 4, 6, 8, and 10 Position Housings
  • Available Fully Shielded for EMI/RFI Protection
GMX-SMT2 Series aaa Surface Mount Right Angle Modular Jack with Post
  • Low Profile Design Suitable for PC Add-On Board Applications
  • Available in 4, 6, 8, and 10 Position Housings
  • Available Fully Shielded for EMI/RFI Protection
GMX-SMT4 Series aaa .45" Height True SMT Right Angle Without Post
  • Low Profile Design Suitable for PC Add-On Board Applications
  • Available in 4, 6, 8, and 10 Position Housings
  • CSA/NRTL Certified File No. LR78160, UL File No. E134345
GPX Series aaa Ganged Perpendicular PCB Mount Modular Gang Jack
  • Available in 6 and 8 Position Housings
  • Top Entry Version
  • Ribbed Pin Guides
  • Metal Locking Brackets
GSGX Series aaa Right Angle Ganged Jack
  • Available in up to 12 Ports
  • Available Fully Shielded for Category 5 Applications
  • High Temperature Reflow Compatible Option Avaliable
GSGX-NS2&NS7 Series aaa Right Angle Ganged Jack
  • Available in up to 8 Ports Available
  • Fully Shielded for Category 5 Applications
  • High Temperature Reflow Compatible Through Hole Design
GSLGX Series aaa Ganged Modular Jack PCB Mount, with LED, Tab Down
  • Easy Viewing LEDs to act as Power/Transmit Indicators
  • Snap in Retention Tabs
  • Available Fully Shielded for EMI/RFI Protection
GSLX Series aaa Modular Jack with LED, Tab Down
  • Easy Viewing LEDs for status Indicators
  • Snap in Retention Tabs
  • Available Fully Shielded for EMI/RFI Protection

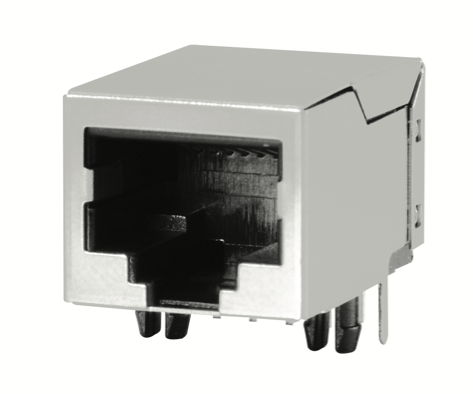

GSX Series aaa Right Angle Modular Jack PCB Mount
  • 0.515" Height
  • Snap in Board Retention Tabs
  • Available with Ground Tabs
  • Available Fully Shielded for Category 5 Applications
GTVX-SMT Series aaa Vertical Surface Mount Modular Jack
  • Low Profile Design Suitable for PC Add-On
  • Board Applications
  • Available in 4 and 6 Positions Housings
GTVX-SMT (8-pin) Series aaa Vertical Surface Mount Modular Jack (8 pins)
  • Low Profile Design Suitable for PC Add-On
  • Board Applications
  • Available in 8 Positions Housings
GTVX-SMT-S Series aaa Vertical Surface Mount Modular Jack
  • Low Profile Design Suitable for PC Add-On
  • Board Applications
  • Available in 8 and 10 Positions Housings
GWLGX Series aaa Ganged Modular Jack Right Angle with LED, Tab Up
  • Easy Viewing LEDs to Act as Power/Transmit Indicators
  • Snap-In Retention Tabs
  • Available Fully Shielded for EMI/RFI Protection
GWLX Series aaa Right Angle Modular Jack with LED, Tab Up
  • Easy Viewing LEDs to Act as Power/Transmit Indicators
  • Snap-In Retention Tabs
  • Available Fully Shielded for EMI/RFI Protection
  • Available Through Hole and Surface Mount
GWX Series aaa Right Angle Modular Jack, Tab Up
  • Low Profile Design Suitable for PC Add-on
  • Tab up Design for Easy Insertion/Removal of Mating Plug
  • Available Fully Shielded for EMI/RFI Protection
  • Available with Through Hole or Surface Mount
GWX-SMT Series aaa Right Angle Modular Jack, Tab Up
  • Low Profile Design Suitable for PC Add-on
  • Tab up Design for Easy Insertion/Removal of Mating Plug
  • Available Fully Shielded for EMI/RFI Protection
  • Available with Through Hole or Surface Mount

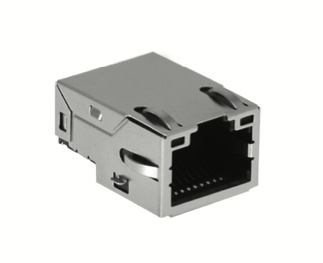

GLPLX Series aaa Low Profile RJ45 Modular Jack with Gigabit magnetics, LEDs
  • Ultra-low profile mid mount design
  • Includes magnetics to support 1000 Base-T applications
  • LEDs for status indicators
  • Shielded for EMI suppression
GSP1X Series aaa RJ45 Modular Jack with Gigabit magnetics over USB, LEDs
  • Stacked RJ45 and USB to reduce PCB footprint
  • Includes magnetics to support 1000 Base-T applications
  • LEDs for status indicators
  • Shielded for EMI suppression
