IDEC Relays & Timers

IDEC is an established and well-known industrial relay manufacturer. For many decades IDEC has supplied the widest selection of relays in the market. Designed with attention to every detail, IDEC relays are manufactured to ensure precision and quality. Either din-rail, panel or PCB mounted, we have the relays that work for your applications.



Idec RJ Slim General Purpose Relay

RJ relays were designed with the same attention-to-detail IDEC is known for. The most recent IDEC innovation is a return spring structure for the RJ relays that eliminates unnecessary weak points improving durability, and increasing electrical conductivity and service life. Available in both Plug-in blade or PCB type, SPDT or DPDT (Form A or Form C) configuration, and up to 16A rated contact, there are no regrets once you design in an RJ relay. Unique light guide to give you a...

Idec RJ Slim Bifurcated

The RJ22 model has a maximum contact rating of 1amp at 250V AC, while maintaining a minimum switching load of 100uA 1V DC, allowing customers to use this relay for their dry circuit switching needs. With the shortest width on the market RJ bifurcated relays are durable, compact and available with plug-in or PCB terminals.

Idec RJ Slim PCB Series

RJ PCB relays, the newest addition to our relay family, were designed with the same attention-to-detail IDEC is known for. The most recent IDEC innovation is a return spring structure for the RJ PCB relays that eliminates unnecessary weak points improving durability, and increasing electrical conductivity and service life.

Idec RU Universal Relay

The adaptable RU series are available in either 2 pole (DPDT) or 4 pole (4DPDT) models. Both RU2 and RU4 models have multiple standard features, including a non-polarized green indicator LED, a mechanical indicator flag, an easily accessible and replaceable marking plate, and a manual latching lever, coded orange/red for AC coil and green/blue for DC coil.

Idec RH Power Relay

Featuring the same contact ratings as the larger RR series, the RH series uses silver cadmium oxide contacts to help reduce voltage arcing. Available in 1 to 4 poles, with either .187 blade plug-in or PCB terminals, the RH series is known for going the distance. Options include manual check buttons, LED indicators, and top flange covers for direct surface mounting. All models carry worldwide approvals including UL, CSA, TUV and CE. Using a standard terminal arrangement, the...

Idec RV8 Interface

IDEC interface relays provide a compact solution for general purpose relay requirements. The RV8 series interface relays are ideal for PLC and other controller output, industrial automation, panel builders, assembly machine applications and other applications that require a high switching capability in a compact space. The RV8 relays can be used as a universal interfaces between the controller and the actuator to switch small and medium size loads. Installation time is greatly ...

Idec RL Power Relay

Designed with a 1- and 2-pole 3HP/277V AC rating in an economical and compact package, 30A RL power relays are the superior choice for HVAC panels, energy management and applications requiring higher voltage loads and inductive kickback.

Idec RQ PCB Low Profile

IDEC’s RQ relays are low-profile, PCB relays that provide quality within a compact package. RQ relays are small, yet maintain high contact ratings and long operational life. For larger power needs, a 16A model is also available.

Idec RF1 Force Guided

Force-guided relays are key electromechanical switching components, providing a failsafe within safety circuits and detecting failures such as contact welding or damage to the contact spring failure. Often used in combination with elevator controls, interlock switches, light curtains and emergency stop switches, these relays are crucial in safety control applications. Our popular RF1V force-guided relays are ideal for applications requiring additional contacts for an HR1S Safety Relay...

Idec RF2 Force Guided

Force-guided relays are key electromechanical switching components, providing a failsafe within safety circuits and detecting failures such as contact welding or damage to the contact spring failure. Often used in combination with elevator controls, interlock switches, light curtains and emergency stop switches, these relays are crucial in safety control applications. Available as a plug-in (RF2S) or pc board (RF2V), RF2 force-guided relays are ideal if you only need two contacts...

Idec RR Power Relay

RR series relays provide reliable switching for industrial loads. Using pure silver contacts, they are rated up to 10A and 240V AC. Terminals are available in two styles, 8 or 11 pin tubular (octal) or .187 plug-in. Coil voltages range from 6VDC to 240VAC.

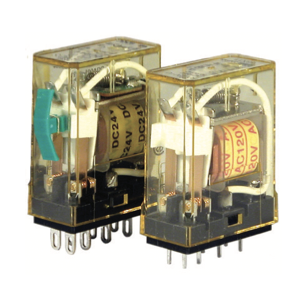

Idec RY Miniature Relay

The RY series of relays satisfy applications for lower level switching needs such as pilot lights or logic level devices. The RY has standard gold plated contacts to prevent contact oxidation from affecting circuit continuity, while optional Palladium alloy bifurcated contacts reduce contact bounce and allow circuit switching in the micro-amp range.

Idec RM Miniature Relay

The RM series of relays satisfy applications for lower level switching needs such as pilot lights or logic level devices. Available options include manual check buttons, LED indicators, or top flanged dust covers for direct surface mounting.

Idec RR2KP Latching Relay

These magnetic latching relays have excellent self-holding performance and operate by pulse input so they maintain conditions even during power failures. They are available in AC and DC coil voltages up to 10A. DIN rail and panel mount sockets are available for a wide range of mounting applications.

Idec RY2KS Latching Relay

A miniature latching relay with a 14-pin ice cube base and DPDT contact configuration. Pulse input operation maintains conditions even during power failures. DIN rail, PCB, and panel mount sockets are available for a wide range of mounting applications.



Idec RSC Solid State

RSC relays have technology to dissipate the heat away from main switching components, making them a great buy. Other relays may require you to add your own heat sink or deal with a burned out product, but the RSC relays from IDEC have a built-in heat sink making them easy to install and get running. The heat sink, along with an epoxy-free design, eliminates the need to de-rate your relay and also increases its life expectancy. And an LED status indicator makes sure you...

Idec RSS Solid State

The "hockey puck" style RSS series of solid state relays allow switching of the most demanding loads. Highly resistant to inrush, with a built-in snubber, the RSS series is ideal for switching loads such as lights and heaters. Available with either DC (4-32V) or AC (90-280V) inputs and output current ratings up to 90A. All models feature zero-voltage turn-on to reduce inrush current and a dual SCR switch (rather than a triac) for enhanced reliability and superior heat dissipation properties.
