New PS6R 120W and 240W: Absolute Power - Expandable and space-saving switching power supplies. High efficiency reduces operation costs.

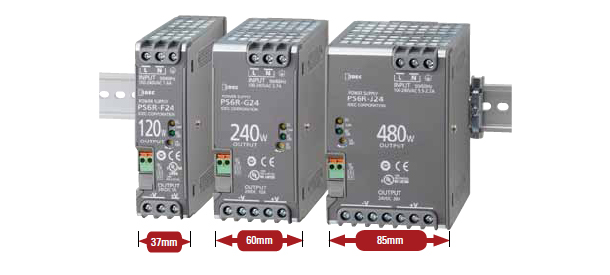

Meet the PSR6 series. They're the first DIN rail-mounted industrial power supplies that expand to provide multiple output voltages from a single unit. These compact units pack big performance into remarkably small spaces. Add a 10W DC-DC converter unit or add two branch terminals —without sacrificing efficiency or performance.



Key Features



  • 93% efficiency
  • Plug-in output modules for additional output voltages
  • Plug-in branch terminal module for additional terminals
  • Power Range: 120W, 240W, 480W
  • Input voltage: 100 to 240V AC (voltage range:85 to 264V AC/110 to 350V DC)
  • Up to 70° operating temperature
  • DC low LED indicator and output contact
  • The terminals are captive spring-up screws. Ring or fork terminals can be used.
  • Finger-safe construction prevents electric shocks.
  • Panel mount bracket and side-mount panel mounting bracket. Can be attached to a DIN rail or directly to a panel surface.
  • RoHS compliant
