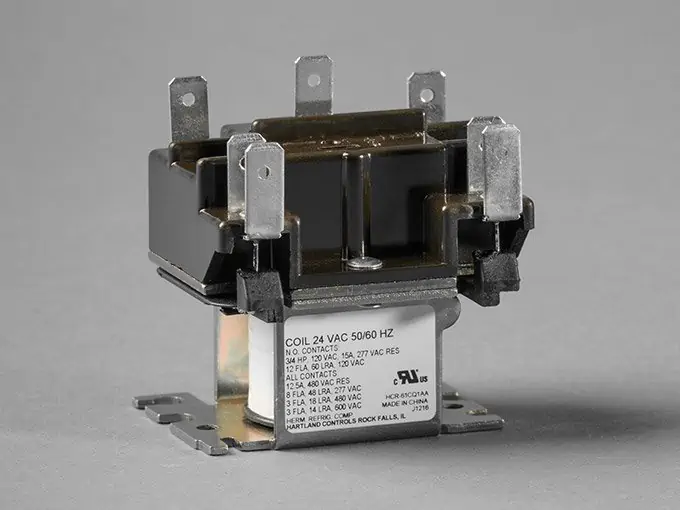

Relays control circuits through a low-power signal. An electro-magnetic current actuates the relay, creating a closed circuit within the device. General purpose relays are used in applications including HVAC systems, standby power supplies and telephone exchanges. We carry extensive inventory to meet delivery schedules.



Features

• SPNO, SPDT, DPNO & DPDT switching configurations
• Class B insulation system
• .250″ QC terminals
• Multi-positional mounting
• UL 508 File No. E227250

Specifications

Arrangement	SPST-NO, SPST-NC, SPDT, DPST-NO, DPST-NC, DPDT
Contact Material	Silver Cadmium Oxide Alloy
Power Rating	3/4 HP 125/250 VAC 12 FLA 60 LRA 15 A Res. @ 125 VAC 6 FLA 35 LRA 15A Res. @ 250/277
VAC	3 FLA 18 LRA 12.5A Res. @ 480 VAC 3 FLA 14 LRA 600 VAC
Pilot Duty Rating	1/10 HP 125/250 VAC 125 VA @ 125/250/480 VAC 3 Amp 277 VAC
Temperature Range	-55 to +125 C
Unit Weight	.38 lb
Power Pole Terminations	.250″ QC
Coil Termination	.250″ QC
Mechanical Life Expectancy	1 million operations
Electrical Life Expectancy	250,000 operations – resistive 100,000 operations – inductive
Nominal Coil Power	AC 9.5 VA

Documents and Downloads

Document	File Type	File Size	Download
HCR-6 Series Datasheet	PDF	149 KB
