Relays control circuits through a low-power signal. An electro-magnetic current actuates the relay, creating a closed circuit within the device. General purpose relays are used in applications including HVAC systems, standby power supplies and telephone exchanges. We carry extensive inventory to meet delivery schedules.



Features

• SPNO, SPDT, 1 NO & 1 NC switching configurations
• Class B insulation system
• .250″ QC terminals
• Multi-positional mounting
• UL 508 File No. E227250
• Double make contact configuration

Specifications

Arrangement	SPNO, SPDT, 1NO &1NC
Contact Material	Silver Cadmium Oxide Alloy
Power Rating	12 FLA 60 LRA 18 Amps Resistive @ 125 VAC 8 FLA 48 LRA 18 Amps Resistive @ 240/277 AC
SPST-NO only	25 Amps Resistive @ 277 VAC
Pilot Duty Rating	Dual: .250″ QC or #6–32 screw/.250″ QC 3 Amps, 277 VAC 125 VA @ 125 VAC 250 VA @ 250 VAC 277 VA @ 277 VAC
Temperature Range	-40 to +65 C
Unit Weight	.19 lb
Power Pole Terminations	.250″ QC
Coil Termination	.250″ QC
Mechanical Life Expectancy	1 million operations
Electrical Life Expectancy	250,000 operations – resistive 100,000 operations – inductive
Nominal Coil Power	DC 2.4 W AC 4.0 VA

Documents and Downloads

Document	File Type	File Size	Download

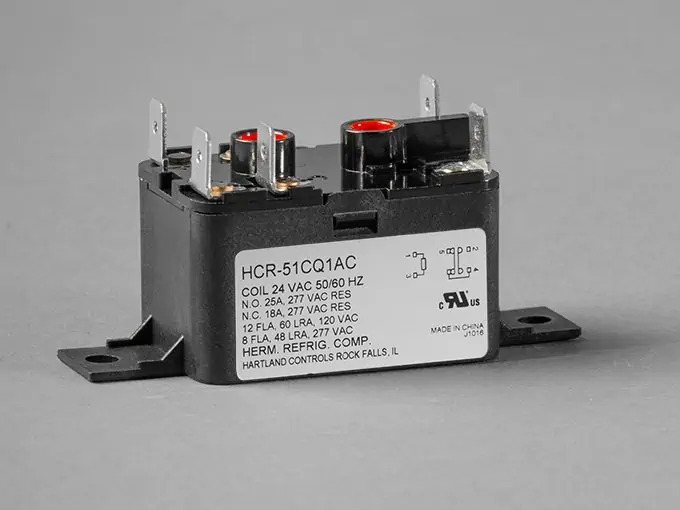

HCR-5 Series Datasheet	PDF	185 KB
