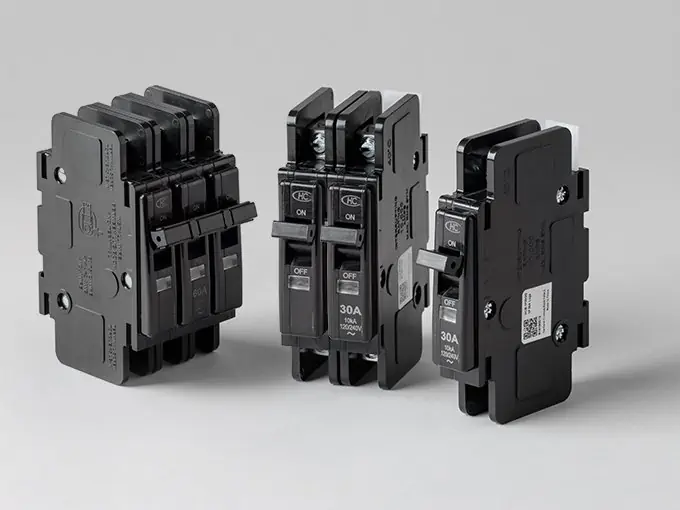

Miniature circuit breakers for use in residential and commercial applications. Tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for miniature circuit breakers and enclosures.



Features

• Unit-mounted (lug/lug) thermal-magnetic circuit breakers
• Can manually open a circuit
• Automatically open a circuit under overload or short circuit
• Feature common tripping of all poles
• Can be flush-, surface-, or DIN rail-mounted
• Has lugs at both ends (cable-in/cable-out construction)
• Operate in any position
• Tested, UL Listed, and CSA certified

Specifications

Line and Load Connections	10–60 ampere, one-, two- and three-pole reversible lugs
Unit Weight	1P .310 lb (4.96 oz) 2P .620 lb (9.92 oz) 3P .960 lb (15.36 oz)
Power Pole Terminations	Aluminum box lug
Wire Size	Box Lug 14-2
Recommended Tightening Torque	Box lug: 45 in. lbs
Quick Connects (optional)	Power terminals: Quad .250″ QC

Documents and Downloads

Document	File Type	File Size	Download
HCB Series Datasheet	PDF	334 KB
