Part Details

6.5 ft Cord
Part No.		 15.5 ft Cord
Part No.		 Description Amps Crod Type Cord Gauge Plug Blade Type
1584C6 1584C15 Straight Blade Molded Plug 15 SJT 14/3 NEMA 5-15P
1584C6RP 1584C15RP Straight Blade - 90 Degree - Right Angle Molded Plug 15 SJT 14/3 NEMA 5-15P

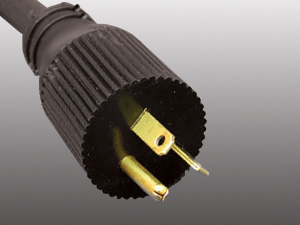

1584C6S20 1584C15S20 Straight Blade Molded Plug 20 SJT 12/3 NEMA 5-20P

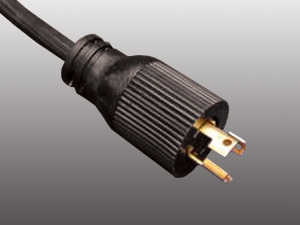

1584C6TW 1584C15TW Locking Type Molded Plug 15 SJT 14/3 NEMA L5-15P

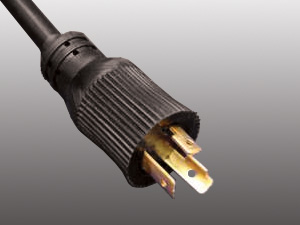

1584C6TW20 1584C15TW20 Locking Type Molded Plug 20 SJT

12/3

 NEMA L5-20P

Part Details

6.5 ft Cord
Part No.		 Description Amps Volts
AC		 Cord
Length		 Cord
Type		 Cord
Guage		 Plug Region Plug Blade Type Connector Type
1581C6EU European Schuko plug 10 250 72.00 SVT 18/3 European Schuko IEC 320-C13
1581C6NA250 North American Nema 6-15P plug 10 250 72.00 SJT 18/3 North America NEMA 6-15P IEC 320-C13
1581C6NA North American Nema 5-15P plu 10 125 72.00 SVT 18/3 North America NEMA 5-15P IEC 320-C13
1581C6UK UK (BS1363) plug 10 250 72.00 SVT 18/3 UK BS1363 IEC 320-C13
1581C6IEC Male & Female IEC 320-C13 Jumper Cord 10 125 72.00 SVT 18/3 Universal IEC 320-C13 IEC 320-C14

Documents and Downloads

Document File Type File Size Download
1584C Series Datasheet PDF 186 KB
