aluNORM - Watertight, Thick Wall

Key Features:

• Material - Aluminum die-cast: G AI SI 12 / DIN 1775
• Shallow lid, deep body
• Captive stainless steel lid screws
• Neoprene oil and petrol resistant gasket standard. (-40ºC up to +80ºC)
• Degree of protection NEMA 4X, IP66, DIN 40050
• Temperature Range (-40ºC up to +80ºC)
• Single-channel Fastening System
• Special developed external mounting feet made from zinc-die-cast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose. (See accessories)
• All sizes have inner blind holes.
• An inner mounting panel - made of zinc-plated steel is also available (See accessories)
• Textured polyester powder coat, beige RAL7032 or light gray RAL7035. (can be supplied unpainted on special order)
• CSA certified, UL Listed, Type 4, for use with industrial control equipment.

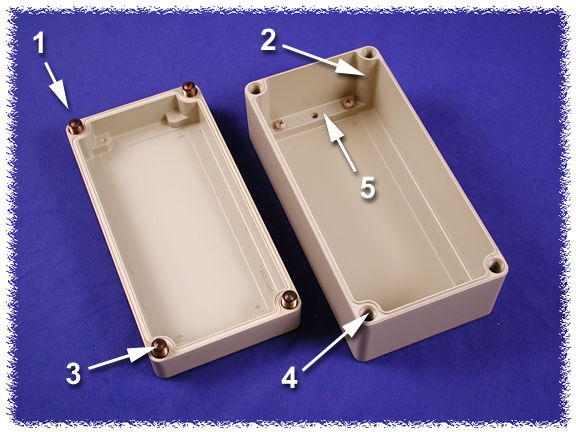

Features

1. Lid screws and mounting holes outside of the gasket seal.
2. Space saving single channel mounting (ie...same hole used for mounting enclosure through rear and also for the lid), provides larger interior space than dual channel enclosures.
3. Captive stainless steel lid screws.
4. Enclosure holes threaded for easy installation and repetitive assembly & disassembly.
5. Internal mounting shelves placed along both sides of enclosure include blind holes and grounding screws.

Documents and Downloads

Document	File Type	File Size	Download
R100 Series Datasheet	PDF	621 KB
