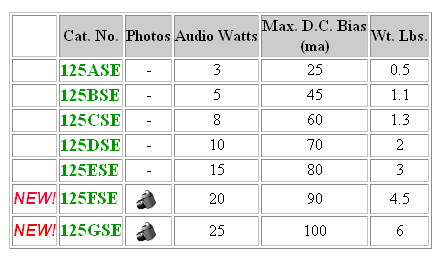

Designed for general purpose or replacement use (not Hi-Fi), in single ended, tube output circuits.
Frequency response: 100 Hz. - 15 Khz (+/- 1db max. - ref. 1 Khz).
For full frequency response (20 Hz. to 20 Khz.) - see our 1627-1642 series.
For push-pull output use, see our 125 series - optimized for push-pull tube output circuits.
Open style with minimum 12" long primary & secondary leads leads.
All sizes use butt stacked cores (using 29M6 steel) with an air gap, to reduce D.C. core saturation.
Primary impedance range from 2,500 to 10,000 Ohms.
Secondary impedance range from 4 to 32 Ohms.
