The 80 Series multi-function and mono-function timers include the following features (according to Type): 17.5mm wide; Six time scales from 0.1s to 24h; Multi-voltage; High input/output isolation
The 81 Series comprises a Multi-function Multi-Voltage timer with seven functions (4 with supply start and 3 with signal start with Reset function) and six time ranges from 0.1s to 10h. Other features include (according to Type): 1 pole; 17.5mm wide; 35 mm rail (EN 60715) mounting

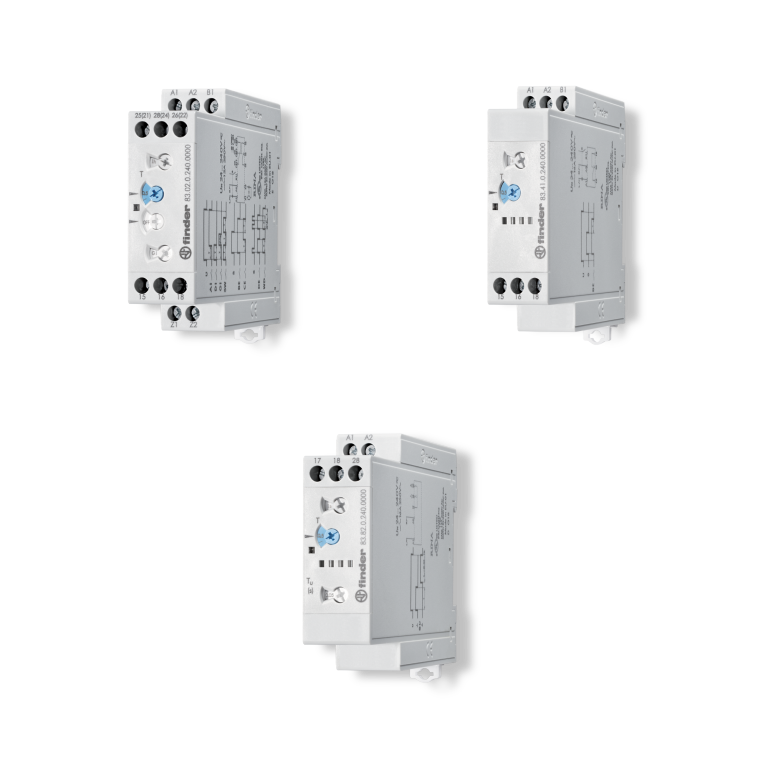

The 83 Series is a range of Multi-function and Mono-function timers. Available a special version: 2 timed contacts or 1 timed + 1 instantaneous contact. Features include (according to Type): 22.5 mm wide; Six time scale from 0.1s to 10 days; Multi-voltage; 1 pole
The 84 timer is Multi-Function SMARTimer which includes the following feaures: Two programming modes (via smartphone with NFC communication or via the joystick); Wide backlit display; Multifunction (25 available functions on each channel); Time units; 0.1 seconds, seconds, minutes, hours; 1 CO (16 A) + 1 CO (16 A) output contacts
The 85 Series is a range of multifunction plug-in timers with seven time scales from 0.05s to 100h. Other features include (according to Type): AC/DC non polarized power supply; 2, 3 or 4 changeover contacts
The 86 Series comprises a multi-function/multi-voltage timer module and a dual-function/multi-voltage timer module. Type 86.00 is designed for use with 90, 92 and 96 Series sockets. Type 86.30 is designed for use with 90, 92, 94, 95, 96 and 97 Series sockets. ATEX/HazLoc version of this product is available. Other features include: Multi-function or Dual-function timers; Multi-voltage; Time scale from 0.05s to 100h; Wide supply range in AC or DC coil
The 88 Series consists of multi-voltage and single-function timers and, multi-voltage and multi-function timers. There is a version available with 2 timed contacts or 1 instantaneous + 1 time. These devices include the following features (according to Type): Suitable for front of panel or back of panel mounting; 8 or 11 pin; Time scales from 0.05s to 100h; AC/DC supplyd
