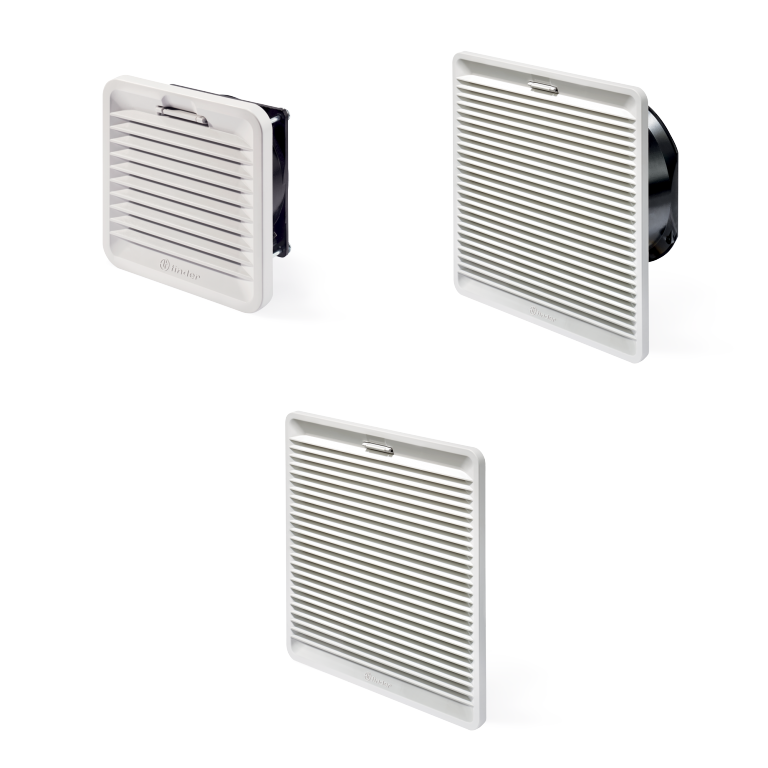

The 7F Series of fans and filter fans for cabinets and electrical panel are products to ventilate and safeguard against high temperatures. The range includes the following features (according to Type): Very low acoustic noise; Minimal depth within enclosure; Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet); Air volume (24…630) m³/h (free flow); Operating voltage: 24 V DC, 120 V AC, 230 V AC

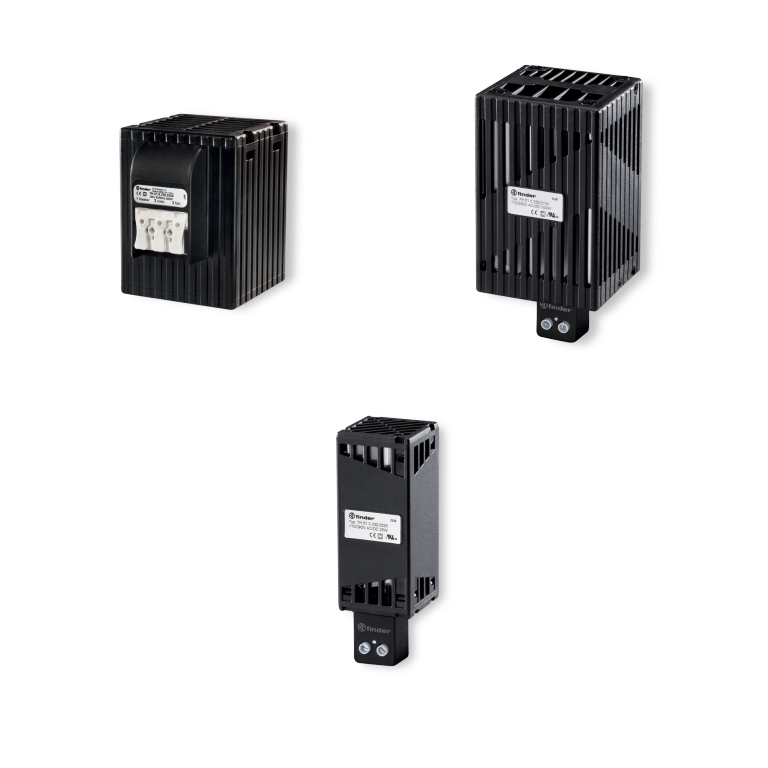

The 7H Series of panel heaters prevent condensation and ensure the optimum temperature within an electrical panel Features include (according to Type): Heater power 25 – 50 – 100 or 150 W; Fan assisted heaters 250 W and 400 W; Power supply 110…230 V AC/DC; PTC self-regulating heating system; Safe touch; 35 mm rail (EN 60715) mount with clip

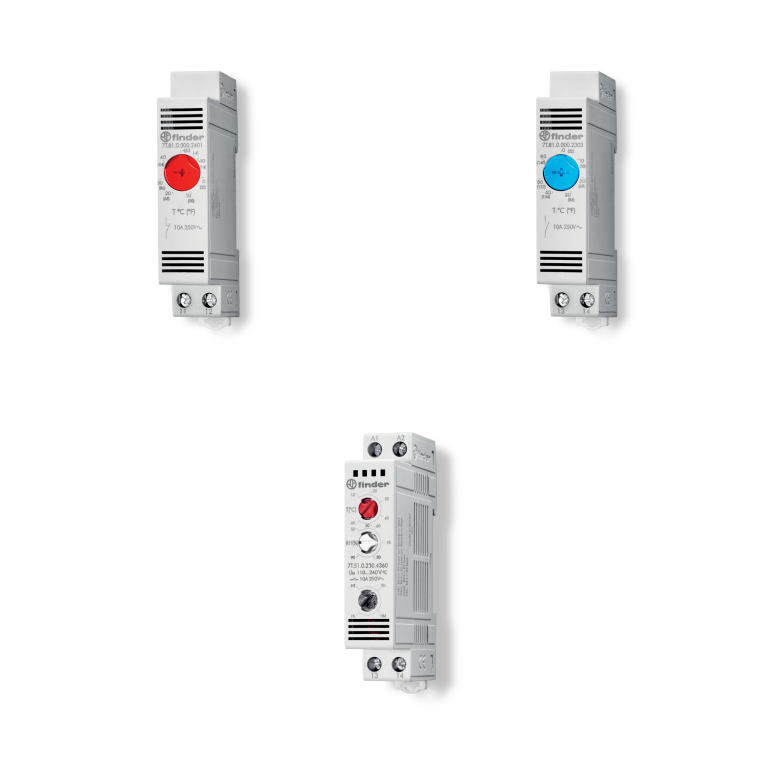

The 7T Series comprises a range of thermo-hygrostats and thermostats which ensure performance of components and instrumentation in control panels and enclosures, and can prolong product life. Features include (according to Type): Small, compact, 17.5mm wide; Wide temperature setting range; 35mm rail (EN 60715) mount
