The 46 Series comprises industrial power relays with the following features (according to Type): DC coils, 500 mW or AC coils, 1.2 VA; Socket mount or direct connection via Faston connectors; Available with lockable test button, mechanical flag & LED indicator; 8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts
Finder’s 55 Series general purpose relay range includes the following features (according to Type): AC & DC coils; PCB or Plug-in mounting; Available with lockable test button, mechanical flag & LED indicator

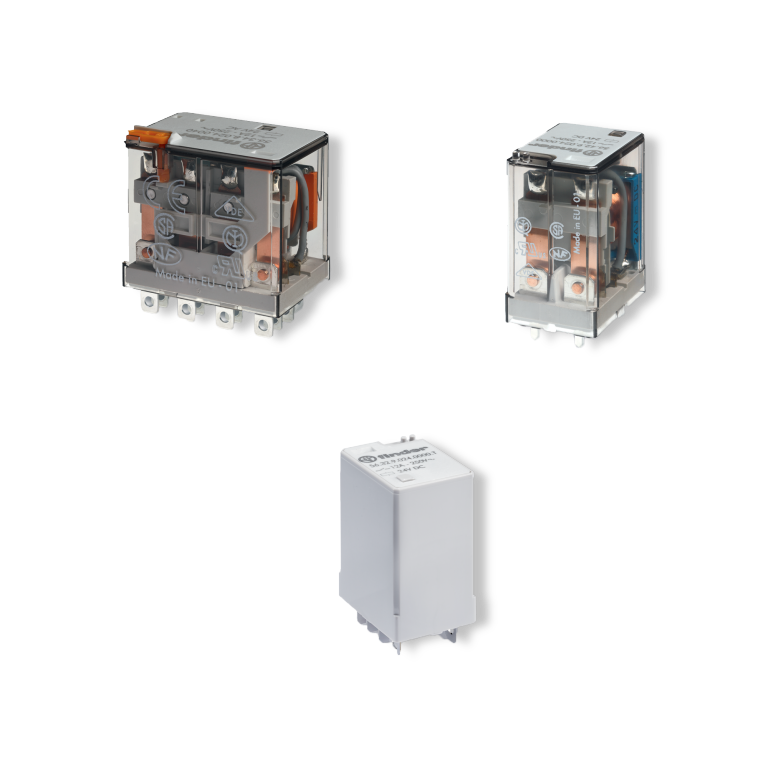

Finder’s 56 Series power relays include the following features (according to Type): AC & DC coils; PCB or Plug-in mounting; Flange mount option (187 Faston termination); Available with lockable test button, mechanical flag & LED indicator
The 60 Finder Series comprises industrial relays which include the following features (according to Type): AC & DC coils, including “current sensing” versions; 8 & 11 pin plug-in; Flange mount; Available with lockable test button, mechanical flag & LED indicator; Version with bifurcated contacts for low level switching
Finder’s 62 Series relays include the following features (according to Type): AC & DC coils; Magnetic blow-out version; PCB mount or Plug-in mount (187 Faston) or Flange mount (250 Faston); NO contacts option, > 3mm contact gap; LED, mechanical indicator & test button options
The 65 Series comprises power relays which include the following features (according to Type): AC & DC coils; PCB mount or Flange mount (250 Faston); NO version, > 3 mm contact gap

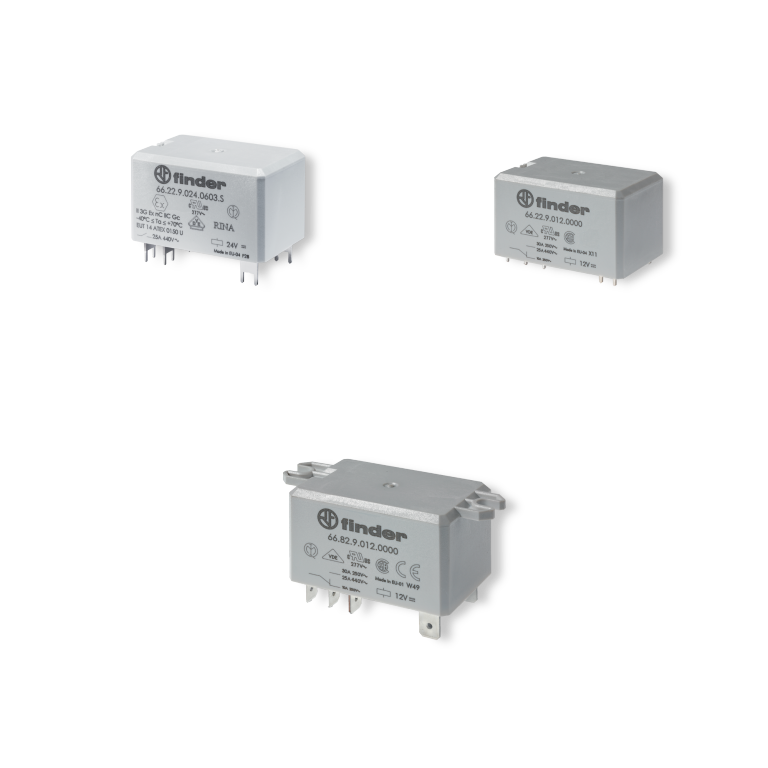

Finder’s 66 Series power relays include the following features (according to Type): AC & DC coils; ATEX/HazLoc compliant (EX nC) option available; PCB mount or Flange mount (250 Faston); 8mm, 6kV (1.2/50 μs) isolation, coil – contacts
The 67 Series brings power relays for use in the photovoltaic sector. These devices include the following features (according to Type): DC coils, with only 170 mW holding power; Contact gap ≥ 3 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2); Reinforced insulation between coil and contacts; 1.5 mm gap between PCB and relay base; Suitable for use at ambient temperatures up to 85 °C (with energy-saving coil energization) or 70 °C (with standard coil energization)
The 68 Series includes the Type 68.22.9.xxx.4300 100 A PCB mount power relay, ideal for EV chargers up to 55 kW (3-phase) and other high power applications. Technical features: Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2); DC coils, with 700 mW holding power; Reinforced insulation between coil and contacts; Suitable for use at ambient temperatures up to 85 °C; Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)...
