30 SERIES Subminiature DIL relays 2A

The 30 Series consists of a 2 A dual in line relay for PCB mounting with the following features (according to Type): 2 Pole changeover contacts; Low level switching capability; Subminiature: – industry standard DIL package; Sensitive DC coil: 200 mW; Wash tight: RT III

32 SERIES Subminiature PCB relays

The 32 Series comprises miniature 6 A relays for printed circuit board mounting with the following features (according to Type): 1 Pole changeover contacts or 1 Pole normally open contact; Subminiature, low profile package; Sensitive DC coil: 200 mW – Wash tight: RT III

34 SERIES Slim P.C.B. Relays (EMR or SSR) 0.1-2-6A

The 34 Series (EMR) relays include the following features (according to Type): Sensitive DC coil: 170 mW; 5 mm wide – 6kV (1.2/50 μs) isolation, coil – contacts

The 34 Series (SSR) relays include the following features (according to Type): Sensitive DC input circuits; 5 mm wide; Silent, high speed switching with long electrical life

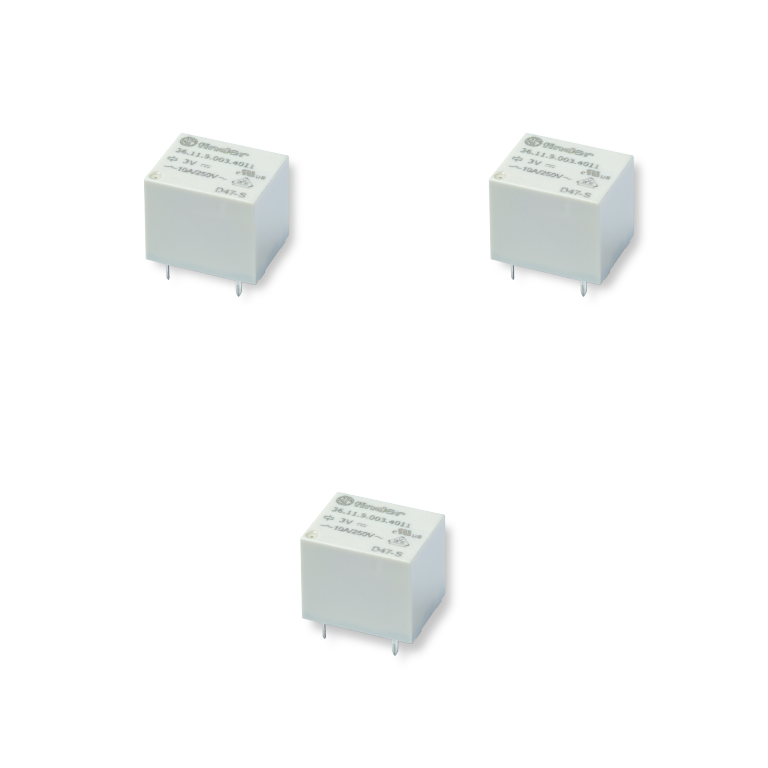

36 SERIES Miniature PCB Relays 10A

The 36 Series comprises a miniature relay suitable for PCB mounting including the following features (according to Type): 1 Pole changeover contact; Miniature “Sugar Cube” package; DC coil: 360 mW; Wash tight: RT III

40 SERIES Miniature PCB Relays 8 - 10 - 12 - 16 A

The 40 Series comprises relays which include the following features (according to Type):PCB/plug-in versions DC coils (standard or sensitive); 500 or 650 mW & AC 5.3 mm pin length 8 mm; 6 kV (1.2/50 μs) isolation, coil – contacts

PCB version: DC coils, 500 or 650 mW; 3.5 or 5.3 mm pin length; 8 mm, 6 kV (1.2/50 μs) isolation, coil – contacts; Flux proof: RT II standard (RT III...

41 SERIES Low-Profile P.C.B. Relays 3 - 5 - 8 - 12 - 16A

The 41 Series is a range of miniature low profile printed circuit board relays (height 15.7 mm). The different Types that make up this Series are: EMR version: Low profile, 15.7 mm height; AC & DC coils; 8 mm, 6 kV (1.2/50 μs) isolation, coil – contacts; Flux proof: RT II standard, (RT III option)

Solid State (SSR) version: Low profile, 15.7 mm height; Sensitive DC input...

43 SERIES Low-Profile P.C.B. Relays 10 - 16A

The 43 Series is a range of miniature PCB relays with the following features (according to Type): Low profile, 15.4 mm height; Sensitive DC coils: 250 mW or 400 mW; Very high coil contact isolation 10 mm, 6 kV (1.2/50 μs); Flux proof: RT II standard, (RT III option); 3.2 or 5 mm pin pitch

45 SERIES Miniature PCB Relays 10 - 16A

The 45 Series products are miniature PCB relays for high ambient temperature + 105 °C / + 125 °C with the following features (according to Type): Sensitive DC coil: 360mW; Relay for +125°C ambient use; Contact gap ≥ 3mm according to EN 60730-1; 8mm, 6kV (1.2/50 μs) isolation, coil – contacts; PCB mounting + 250 Faston

68 SERIES High Power relay 100 A

The 68 Series includes the Type 68.22.9.xxx.4300 100 A PCB mount power relay, ideal for EV chargers up to 55 kW (3-phase) and other high power applications. Technical features: Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2); DC coils, with 700 mW holding power; Reinforced insulation between coil and contacts; Suitable for use at ambient temperatures up to 85 °C; Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)...

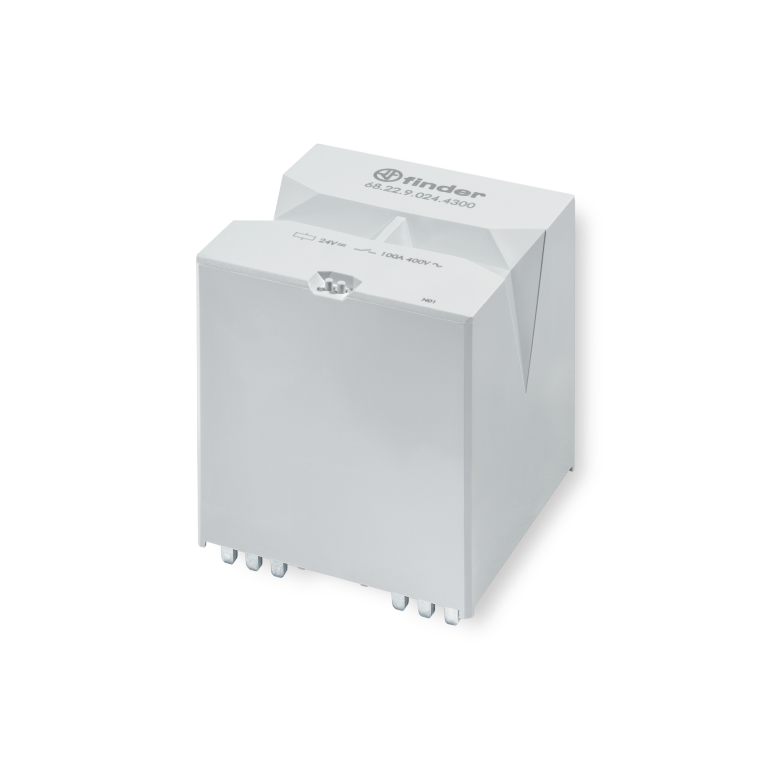

TYPE 68.22 - HIGH POWER RELAY 100A

The Type 68.22-4300 100 A PCB mount power relay is ideal for a variety of high power applications such as generators, UPS, pumps, photovoltaic inverters and EV chargers. Other features: Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2); DC coils, with 700 mW holding power; Reinforced insulation between coil and contacts; Suitable for use at ambient temperatures up to 85 °C; Conforms to EN 60335-1 resistance to heat and fire...
